g009038

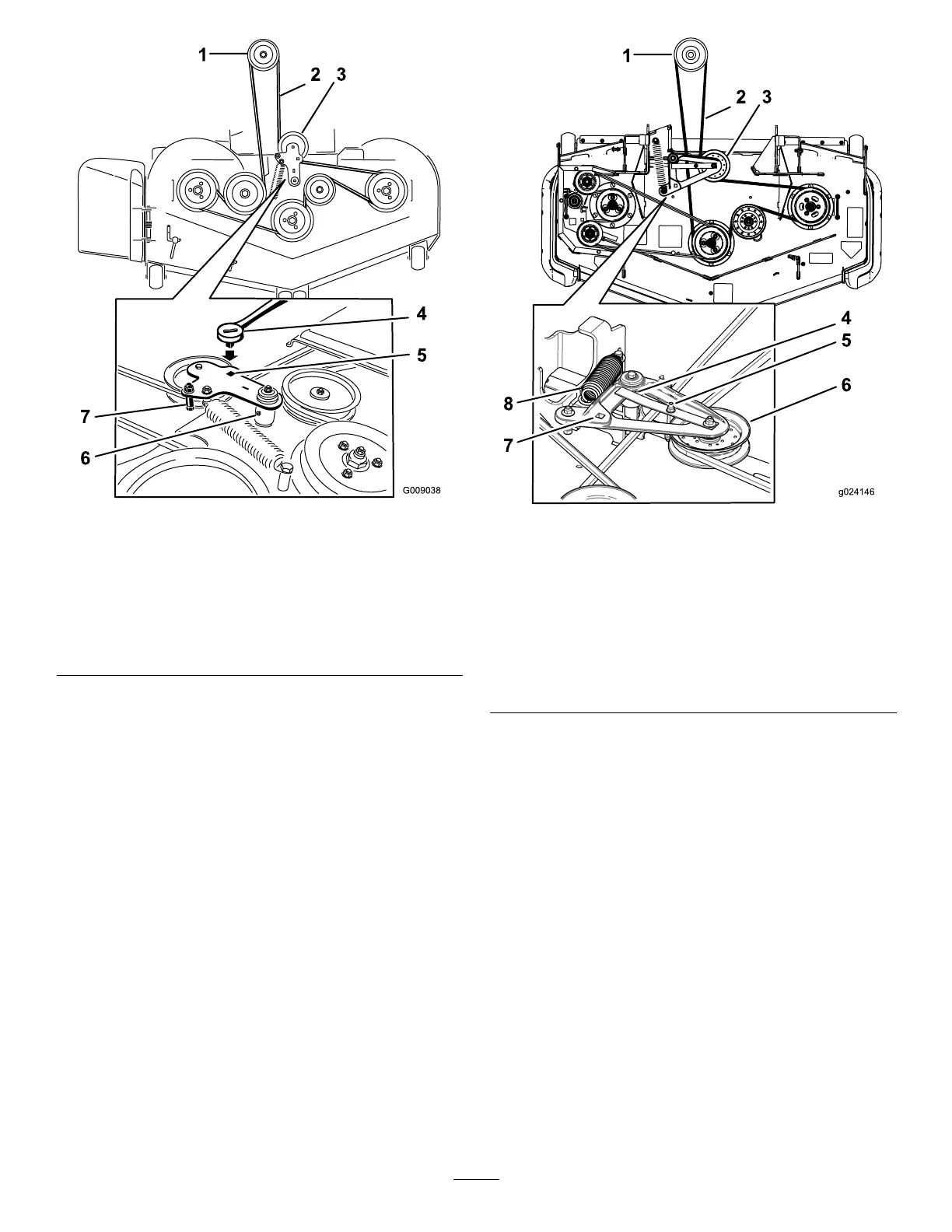

Figure 121
Side-Discharge Machines
1. Clutch pulley 5. Square hole in the idler
arm for the ratchet
2. Mower belt
6. Idler grease tting
3. Spring-loaded idler pulley
7. Belt guide
4. Ratchet
g024146
Figure 122
Rear-Discharge Machines
1. Clutch pulley
5. Belt guide
2. Mower belt
6. Spring-loaded idler pulley
3. Spring-loaded idler pulley 7. Square hole in the idler
arm for the ratchet
4. Ensure that the belt-guide
tab hits against the pivot
hub.
8. Spring
7. Remove and retain the hardware on both sides
of the deck as shown in Figure 123 .
76
