Operating the Parking
Brake
Always engage the parking brake when you stop the
machine or leave it unattended.

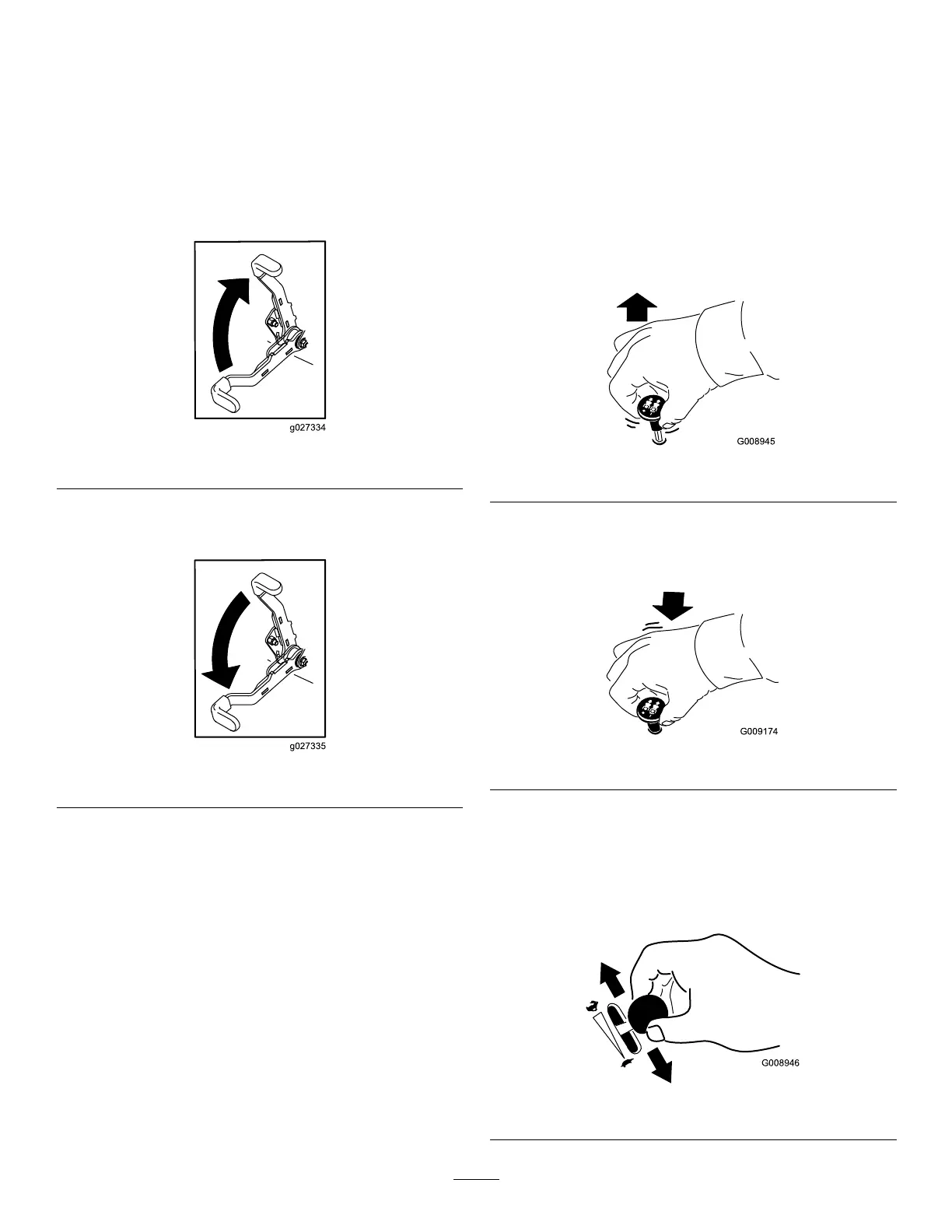

Engaging the Parking Brake
Park the machine on a level surface.
g027334
Figure 17
Disengaging the Parking Brake
g027335
Figure 18
Operating the Mower
Blade-Control Switch (PT O)
The blade-control switch (PT O) starts and stops the
mower blades and any powered attachments.
Engaging the Blade-Control
Switch (PT O)
Note: Engaging the blade-control switch (PT O) with
the throttle position at half or less causes excessive
wear to the drive belts.
g008945
Figure 19
Disengaging the Blade-Control
Switch (PT O)
g009174
Figure 20
Operating the Throttle
Y ou can move the throttle control between F AST and
S LOW positions ( Figure 21 ).
Always use the F AST position when engaging the PT O.
g008946
Figure 21
27
