Adjusting the
Motion-Control
Neutral-Lock Pivot
Y ou can adjust the anged nut to obtain the desired
motion-control lever resistance when moving it to
the N EUTRAL -L OCK position. See Figure 109 for
adjustment options.
1. Loosen the jam nut.
2. T ighten or loosen the anged nut to the desired
feel.
• For more resistance, tighten the anged nut.
• For less resistance, loosen the anged nut
3. T ighten the jam nut.
g008621

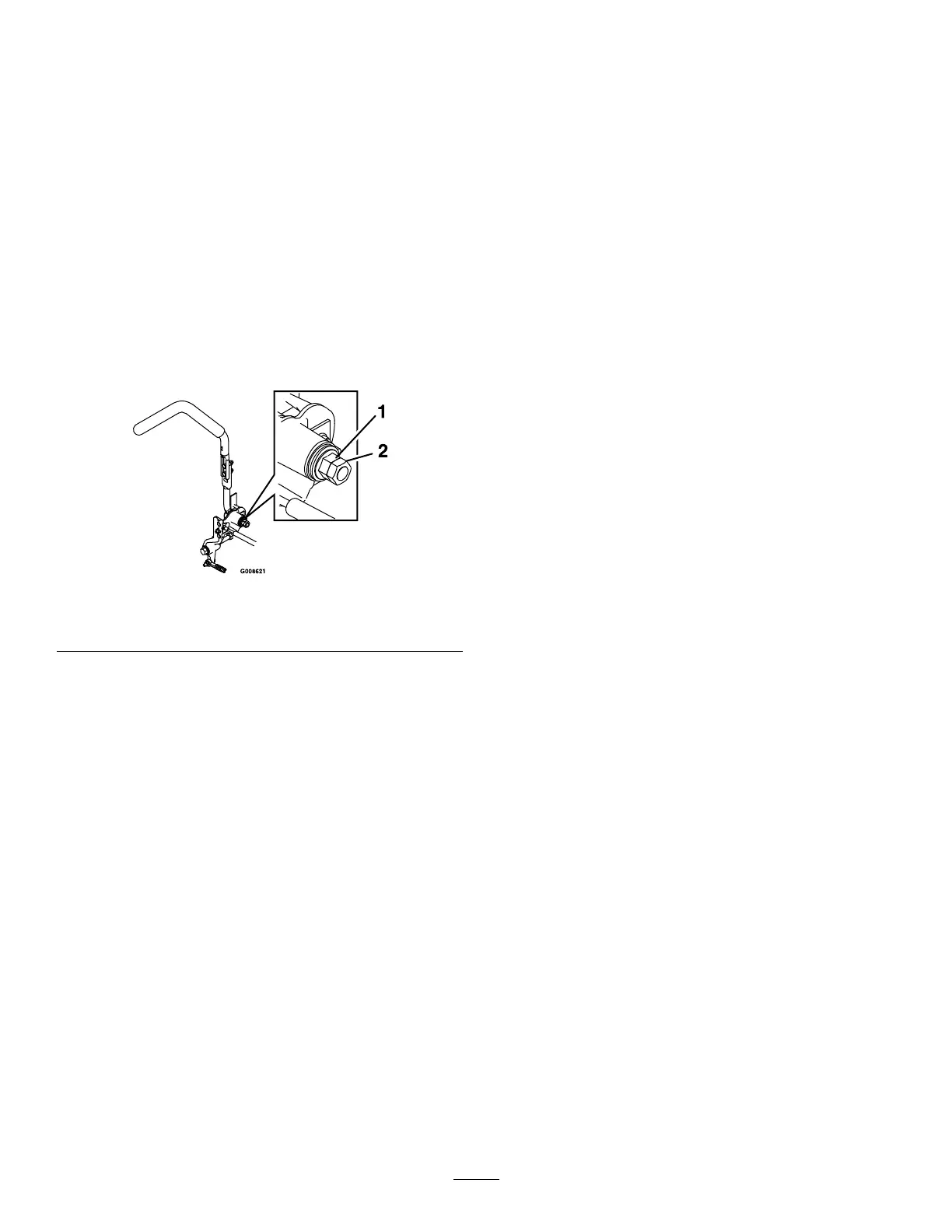

Figure 109
1. Flanged nut 2. Jam nut
Hydraulic System
Maintenance
Hydraulic System Safety
• Seek immediate medical attention if uid is injected
into skin. Injected uid must be surgically removed
within a few hours by a doctor .
• Ensure that all hydraulic-uid hoses and lines are
in good condition and all hydraulic connections
and ttings are tight before applying pressure to
the hydraulic system.
• Keep your body and hands away from pinhole
leaks or nozzles that eject high-pressure hydraulic
uid.
• Use cardboard or paper to nd hydraulic leaks.
• Safely relieve all pressure in the hydraulic system
before performing any work on the hydraulic
system.
Hydraulic-Fluid
Specications
Hydraulic-Fluid T ype: T oro
®
HYPR-OIL
™
500
hydraulic uid or Mobil
®
1 15W -50.
Important: Use the specied uid. Other uids
could damage the hydraulic system.
Each Hydraulic-System Fluid Capacity: 1.5 L (52
oz) per side with lter change
Checking the Hydraulic
Fluid
Service Interval : Every 50 hours —Check the
hydraulic-uid level.
1. Park the machine on a level surface, disengage
the blade-control switch (PT O), and engage the
parking brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Allow the engine and the hydraulic system to
cool for 10 minutes.
Note: The oil level on the dipstick is incorrect
when the oil is checked and the machine is hot.
4. Move the seat forward.
5. Clean the area around the dipsticks of
hydraulic-system reservoirs ( Figure 1 10 ).
6. Remove 1 dipstick from the hydraulic reservoir
( Figure 1 10 ).
73
