g228804

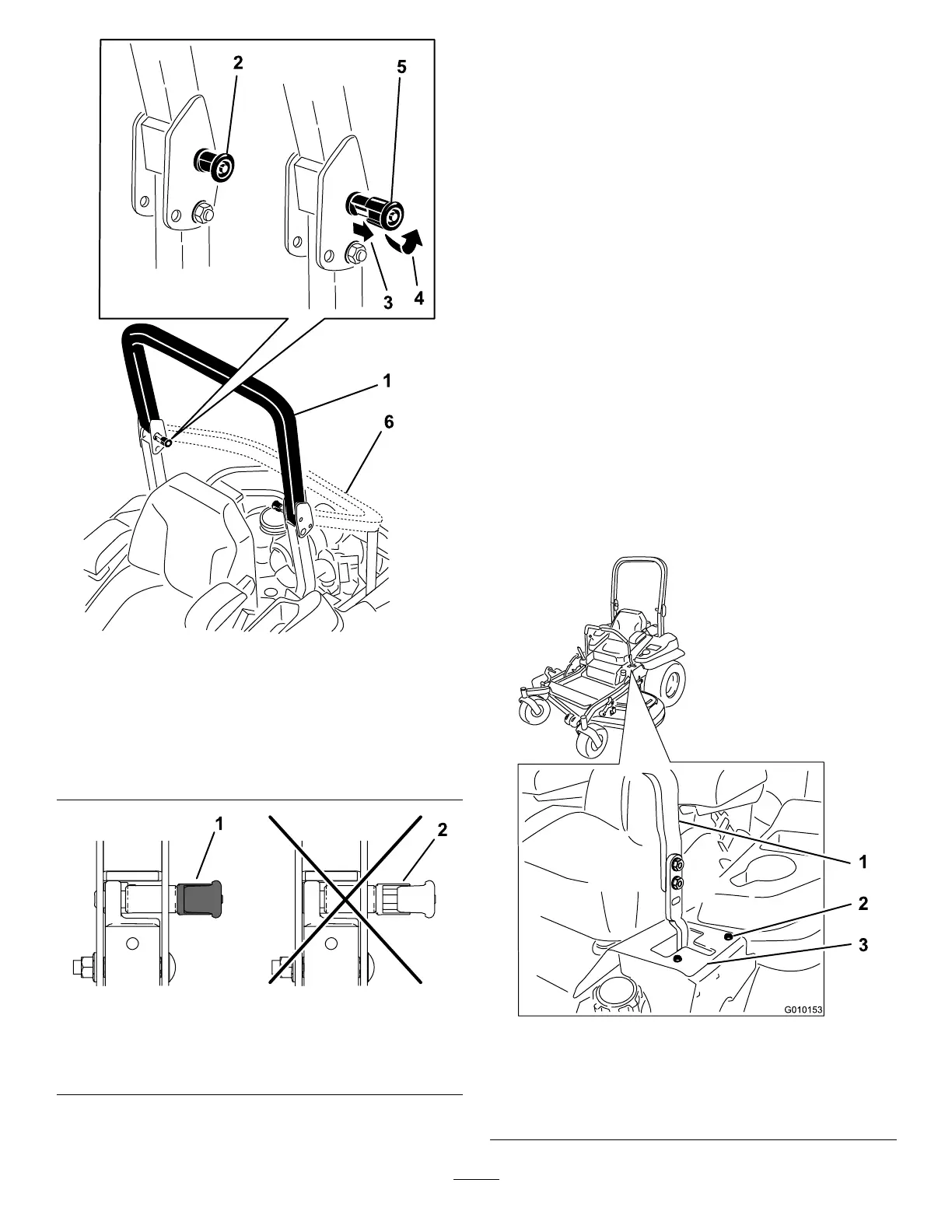

Figure 81
1. Roll bar in the upright
position
4. Rotate the roll-bar knob 90
degrees.
2. Roll-bar knob in the
latched position
5. Roll-bar knob in the
unlatched position
3. Pull the roll-bar knob out
and rotate it 90 degrees.
6. Roll bar in the folded
position
g228981
Figure 82
1. Engaged 2. Partially engaged—do not
operate with the roll bar in
this position.
Adjusting the T racking
1. Disengage the blade-control switch (PT O).
2. Drive to an open at area, move the
motion-control levers to the N EUTRAL -L OCK
position.
3. Move the throttle midway between the F AST and
S LOW positions.
4. Move both motion-control levers all the way
forward until they both hit the stops in the T -slot.
5. Check which way the machine tracks.
6. Engage the parking brake, shut of f the engine,
and remove the key .
7. Adjust the stop plates as needed.
• If the machine tracks to the right, loosen the
bolts and adjust the left stop plate rearward
on the left T -slot until the machine tracks
straight ( Figure 83 ).
• If the machine tracks to the left, loosen the
bolts and adjust the right stop plate rearward
on the right T -slot until the machine tracks
straight ( Figure 83 ).
8. T ighten the stop plate ( Figure 83 ).
g010153
Figure 83
Left control lever shown
1. Control lever 3. Stop plate
2. Bolt
61
