Adjusting the Anti-Scalp
Rollers
Machines with Side Discharge
Whenever you change the height-of-cut, adjust the
height of the anti-scalp rollers.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.

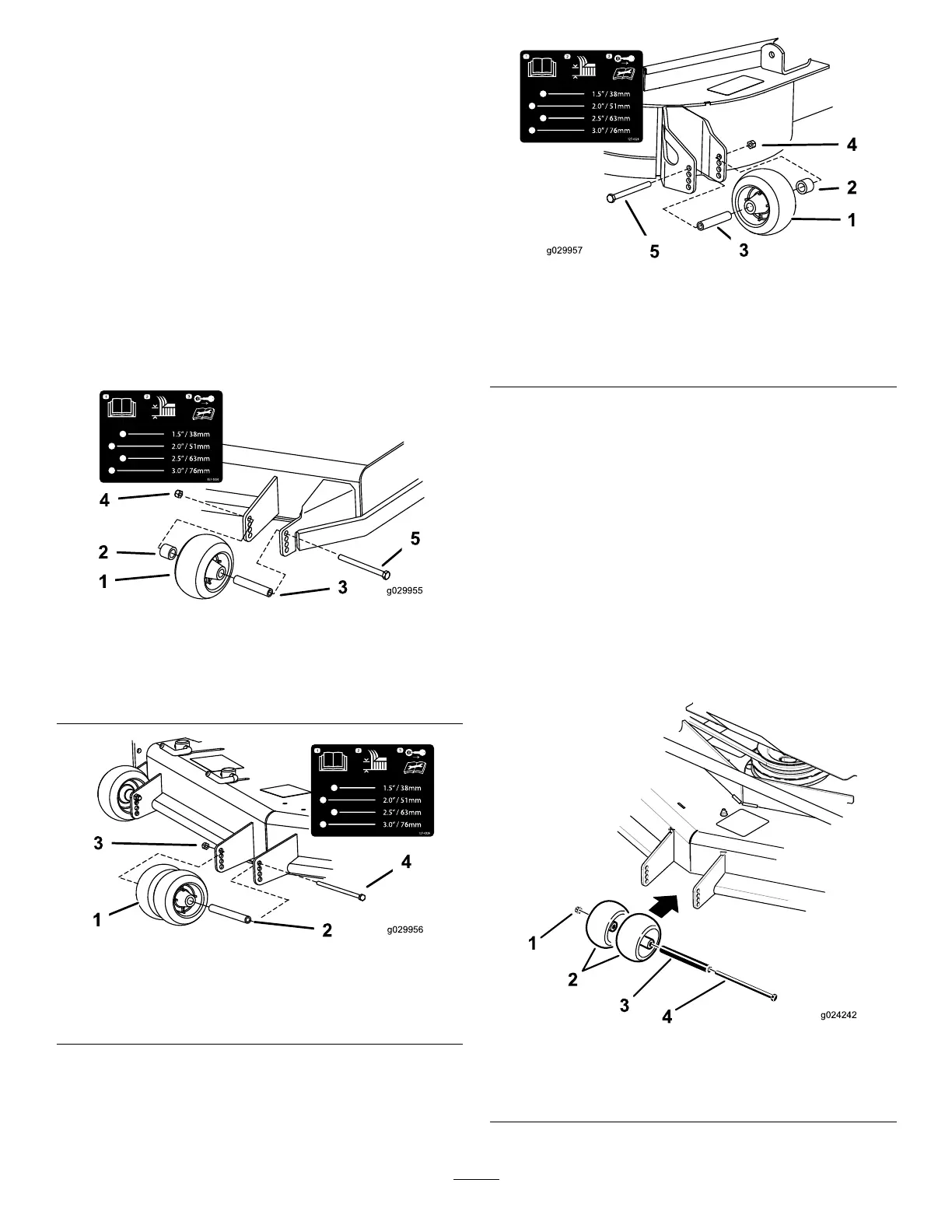

3. Adjust the anti-scalp rollers as shown in Figure
29 , Figure 30 , and Figure 31 .
g029955
Figure 29
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
g029956
Figure 30
1. Anti-scalp roller 3. Flange nut
2. Bushing 4. Bolt
g029957
Figure 31
1. Anti-scalp roller 4. Flange nut
2. Spacer
5. Bolt
3. Bushing
Machines with Rear Discharge
Whenever you change the height of cut, it is
recommended to adjust the height of the anti-scalp
rollers.
1. Park the machine on a level surface, disengage
the blade-control switch, and engage the parking
brake.
2. Shut of f the engine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Adjust the anti-scalp rollers as shown in Figure
32 and Figure 33 .
g024242
Figure 32
1. Flange nut 3. Bushing
2. Anti-scalp roller 4. Bolt
