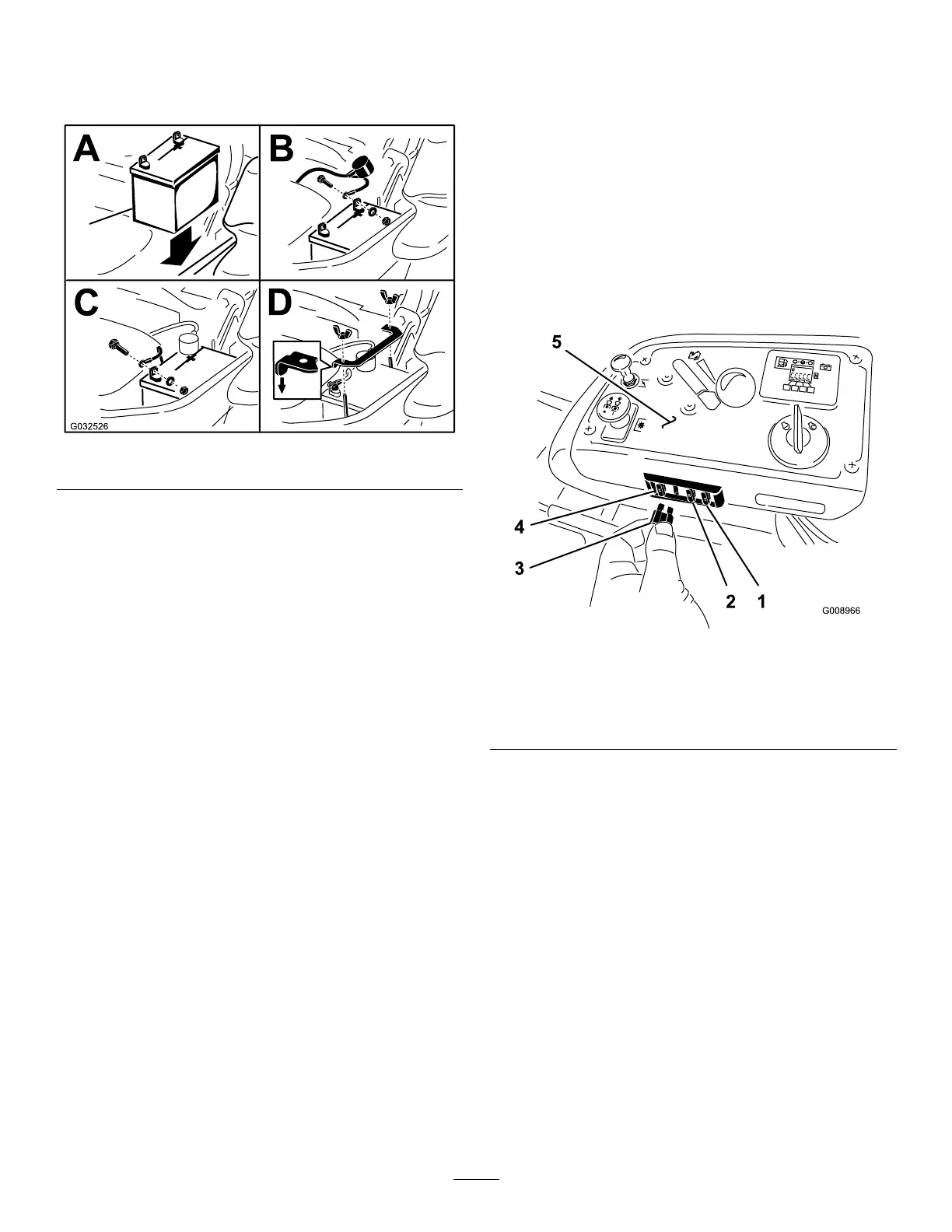

Installing the Battery
Note: Position the battery in the tray with the terminal
posts opposite from the hydraulic tank ( Figure 76 ).
g032526
Figure 76
Servicing the Fuses
For Machines with a Standard
Hour Meter
The electrical system is protected by fuses. It requires
no maintenance, however , if a fuse blows check the
component/circuit for a malfunction or short.
The fuses are located on the console to the right of
the seat ( Figure 77 ).
1. T o replace the fuses, pull out on the fuse to
remove it.
2. Install a new fuse ( Figure 77 ).
g008966
Figure 77
1. Optional accessory (15 A) 4. Main (25 A)
2. Charge (25 A) 5. Console
3. PT O (10 A)
58
