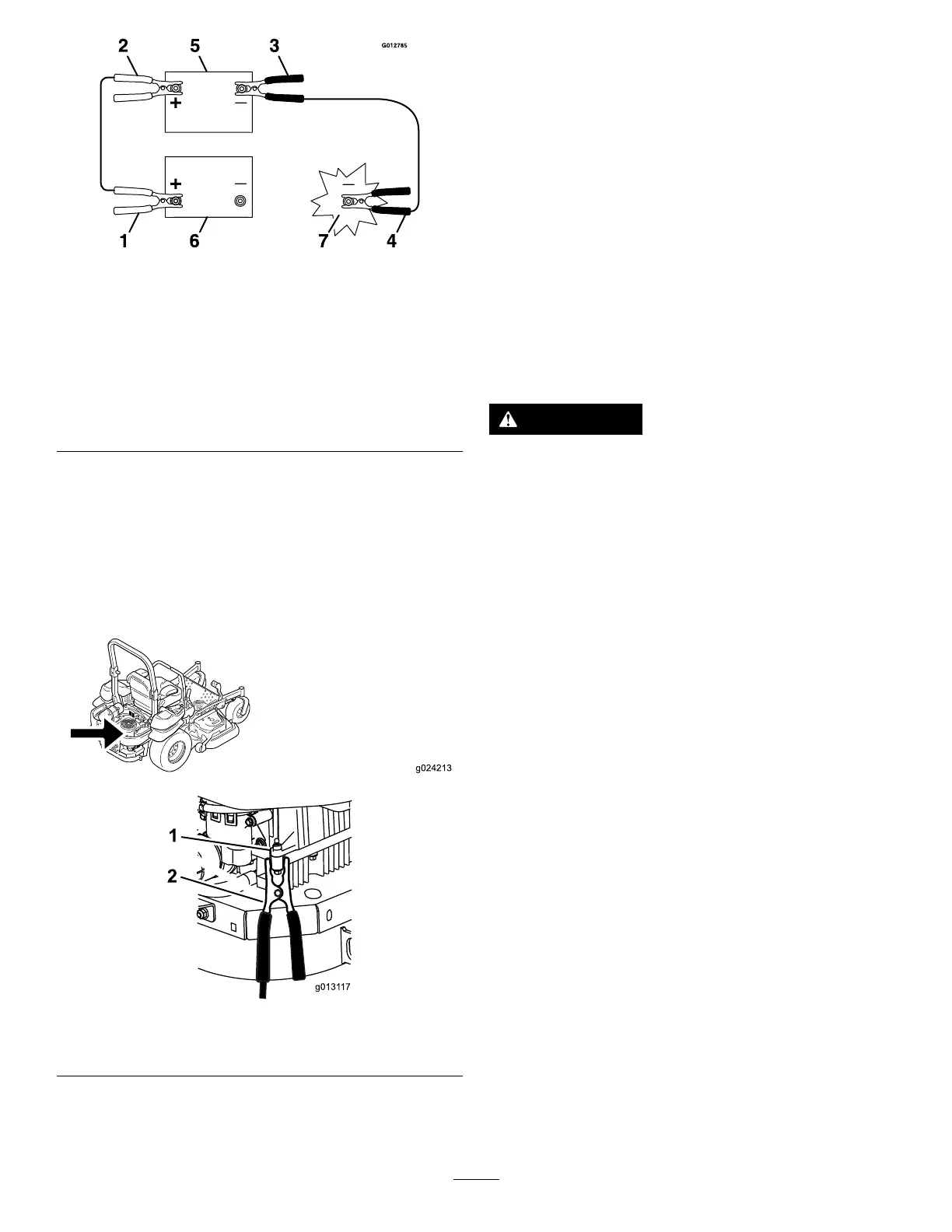

Figure 79
1. Positive (+) cable on
discharged battery
5. Booster battery
2. Positive (+) cable on
booster battery
6. Discharged battery
3. Negative (–) cable on the
booster battery
7. Engine block
4. Negative (–) cable on the
engine block
4. Connect the other end of the positive cable to
the positive terminal of the booster battery .
5. Connect the black negative (–) cable to the other
terminal (negative) of the booster battery .
6. Make the nal connection on the engine block of
the stalled machine (not to the negative battery
post), away from the battery , and stand back
( Figure 80 ).
g024213
g0131 17
Figure 80
1. Engine block
2. Negative (–) cable
7. Start the machine and remove the cables in
the reverse order of connection (disconnect the
negative cable from the engine block rst).
Drive System
Maintenance
Checking the Seat Belt
Service Interval : Before each use or daily
Inspect the seat belt for wear , cuts, and proper
operation of the retractor and buckle. Replace the
seat belt if it is damaged.
Checking the Roll-Bar
Knobs
Service Interval : Before each use or daily
W ARNING
T o avoid injury or death from rollover , keep
the roll bar in the fully raised, locked position
and use the seat belt.
Ensure that the seat is secured to the
machine.
• Check that both the mounting hardware and the
knobs are in good working condition.
• Make sure that the knobs are fully engaged with
the roll bar in the raised position.
Note: The upper hoop of the roll bar may need
to be pushed forward or pulled rearward to fully
engage both knobs ( Figure 81 and Figure 82 ).
