 GT Series Tractors Service Manual
3
 5HSHDWVWHSVWKUXRQWKHRSSRVLWHVLGHRIWKH
machine.
 6OLGHWKHHQGVRIWKHGHFNOLIWVKDIWRXWRIWKHVLGHV
of the frame. Move the wire harness from above the
deck lift shaft assembly. Slide the assembly back to
the left and remove the lift handle from the slot in the
fender. Remove the assembly through the right side
RIWKHPDFKLQH)LJDQG)LJ
Fig 364 3,&7
Fig 365 3,&7

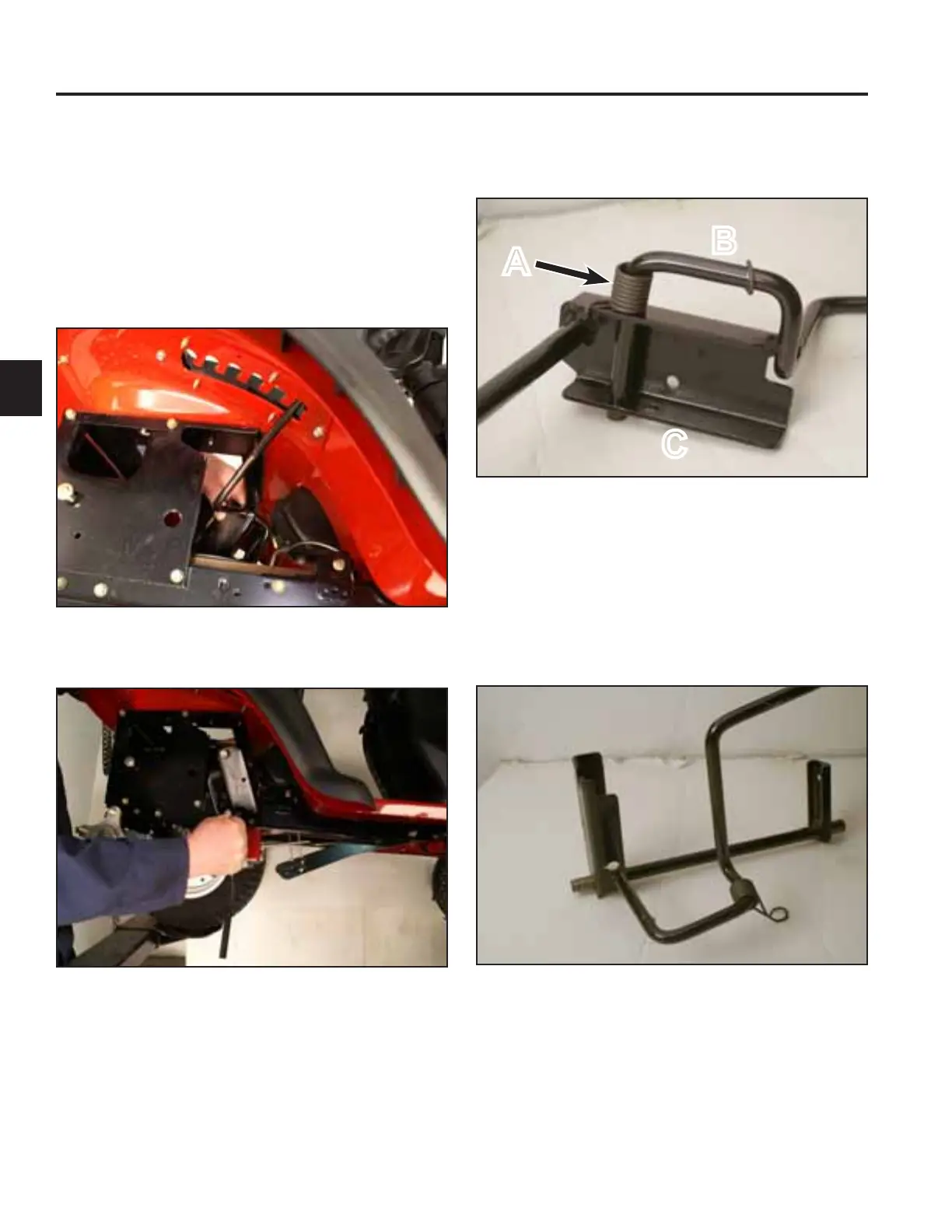

18. Remove the torsion spring from the handle and shaft
DVVHPEO\)LJ
Fig 366 3,&7D
 5HPRYHWKHKDQGOHIURPWKHVKDIWDVVHPEO\)LJ

A. Torsion spring C. Shaft assembly
B. Handle
Fig 367 3,&7D
A
B
C
