CHASSIS
GT Series Tractors Service Manual
3

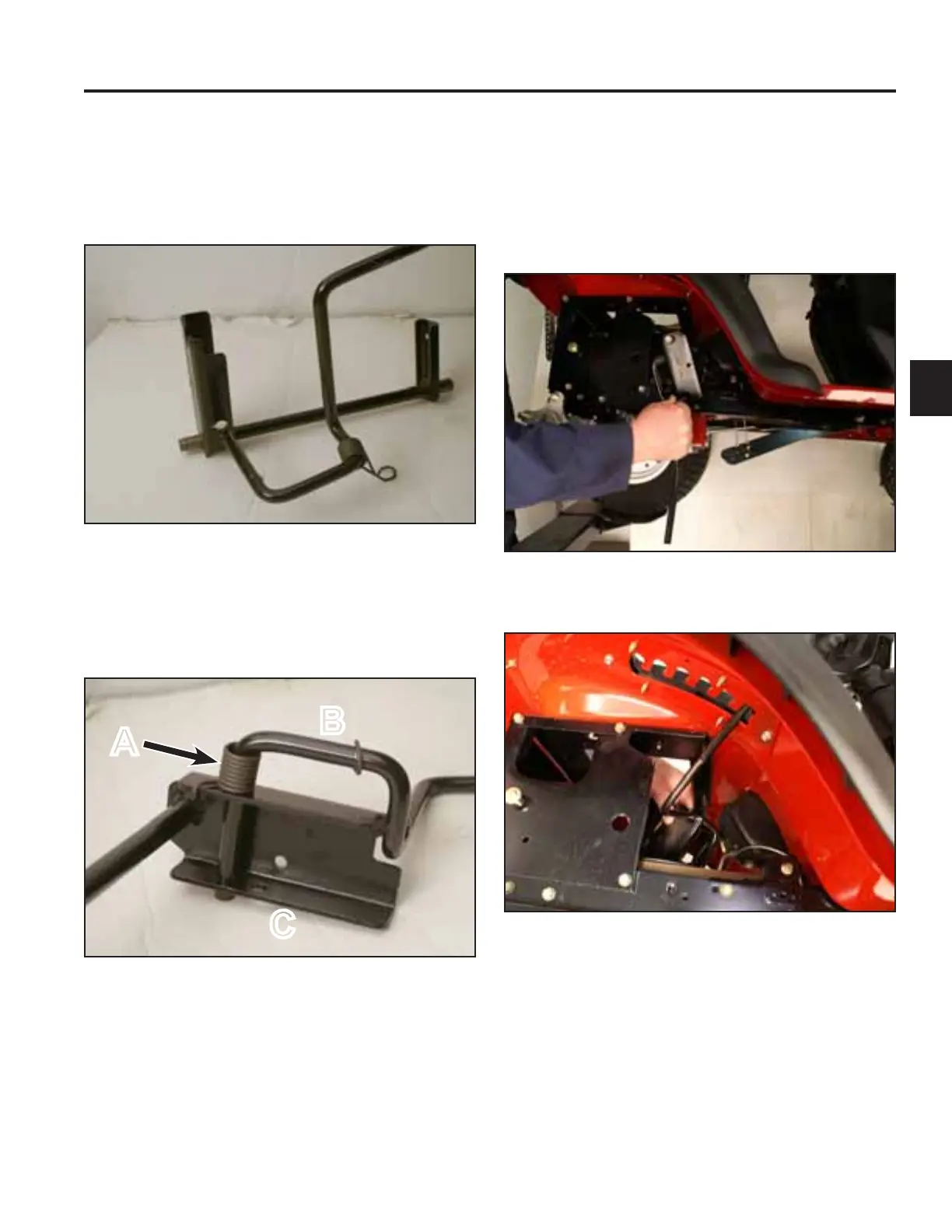

 ,QVWDOOWKHKDQGOHLQWRWKHVKDIWDVVHPEO\)LJ
Fig 368 3,&7D
2. Install the torsion spring securing the handle to the
VKDIWDVVHPEO\)LJ
A. Torsion spring C. Shaft assembly
B. Handle
Fig 369 3,&7D
'HFN/LIW+DQGOH6KDIW$VVHPEO\
Installation
3. Insert the deck lift shaft and handle assembly in to
the frame from under the right side of the fender.
Insert the handle into the slot in the fender. Position
the wire harness on top of the shaft assembly. Insert
the ends of the shaft into the sides of the frame (Fig.
DQG)LJ
Fig 370 3,&7
Fig 371 3,&7
A
B
C
