ENGINE
4-5GT Series Tractors Service Manual
4
21. Loosen the oil dipstick. Remove the oil drain cap and
LQVWDOOWKHGUDLQKRVHRQWRWKHRLOGUDLQ¿WWLQJ7ZLVW
WKHRLOGUDLQ¿WWLQJFRXQWHUFORFNZLVHDQGSXOOWR
drain the oil from the engine (Fig. 402).
25. Attach chains/straps and a hoist to the lift points on
the engine. Raise and remove the engine from the
frame (Fig. 403).
22. Loosen the engine oil dipstick.
 $IWHUWKHRLOKDVGUDLQHGWXUQWKHRLOGUDLQ¿WWLQJ
clockwise to close. Tighten the oil dipstick.
24. Remove the drain hose and reinstall the oil drain
cap.

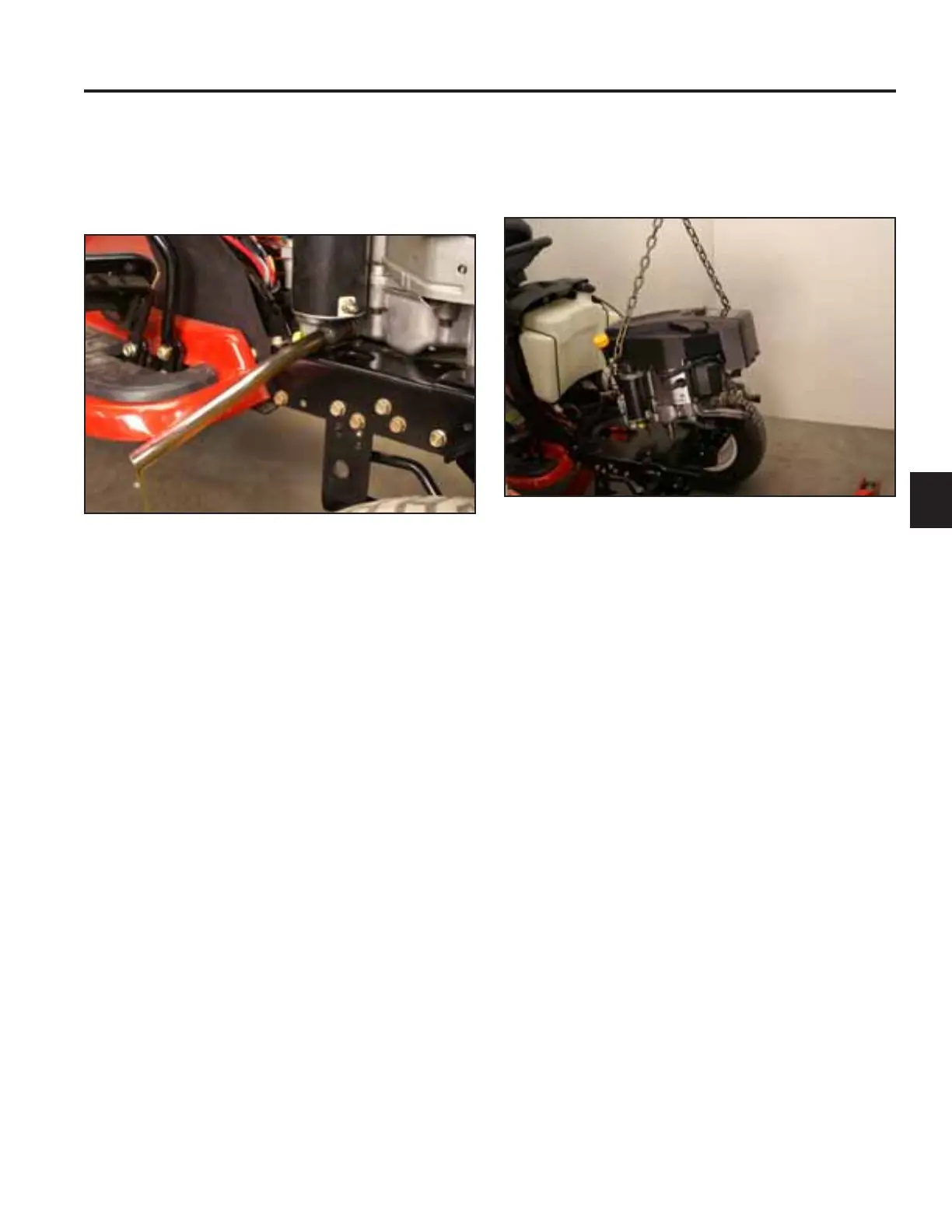

Fig 402 PICT-7612
Fig 403 PICT-7613
26. If the engine is being serviced, refer to the engine
manufacture’s service manual.
27. If a new engine is being installed:
 7UDQVIHUWKHPDUNLQJRQWKHWKURWWOHFKRNHEUDFNHW
to the bracket on the new engine.
 ,QVWDOODFDEOHWLHRQWKHQHZHQJLQHWRURXWHWKH
throttle/choke cables through.
 7UDQVIHUWKH5FODPSWKDWWKHWKURWWOHFKRNH
cables get routed through to the new engine.
