ENGINE
4-7GT Series Tractors Service Manual
4
6. Hook the throttle and choke cable z-bends into the
engine brackets (Fig. 409).
Note the marked cable and the marked bracket.

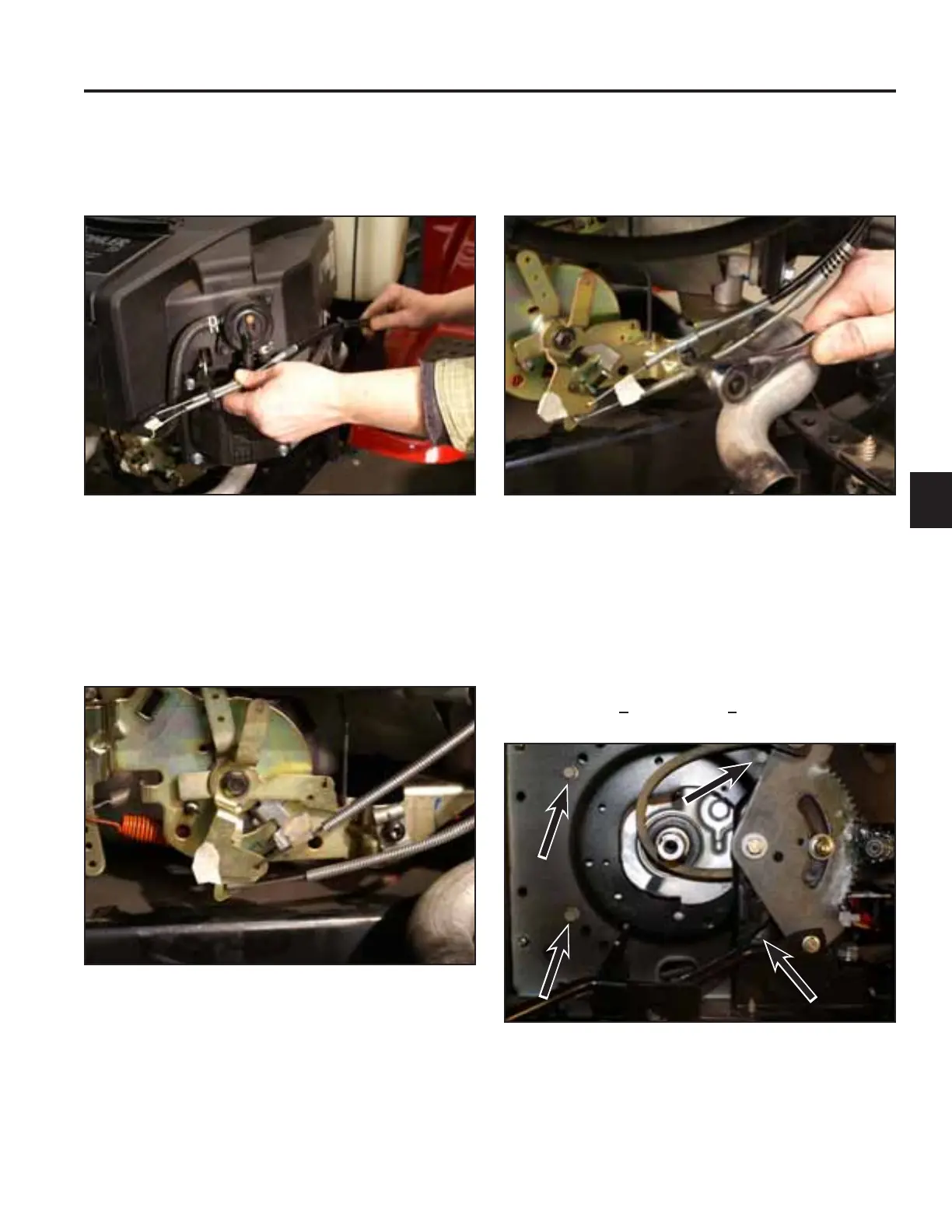

Fig 409 PICT-7617
7. Place the throttle and choke cables into the cable
clamp. Tighten screw only enough to hold the cables
in place (Fig. 410).
5. Slide the throttle and choke cables through cable tie
and position them into the r-clamp located on the left
side of the engine (Fig. 408).
Fig 410 PICT-7596Fig 408 PICT-7614
8. Remove the cable markers.
9. Raise the machine.
10. Align the engine mounting holes with the holes in
the frame. Install the 4 engine mounting bolts and
torque to 16 + 2 ft-lbs. (21.7 + 2.7 Nm) (Fig. 411).
Fig 411 PICT-7620
