GEAR DRIVE SYSTEM
5-12 GT Series Tractors Service Manual
5

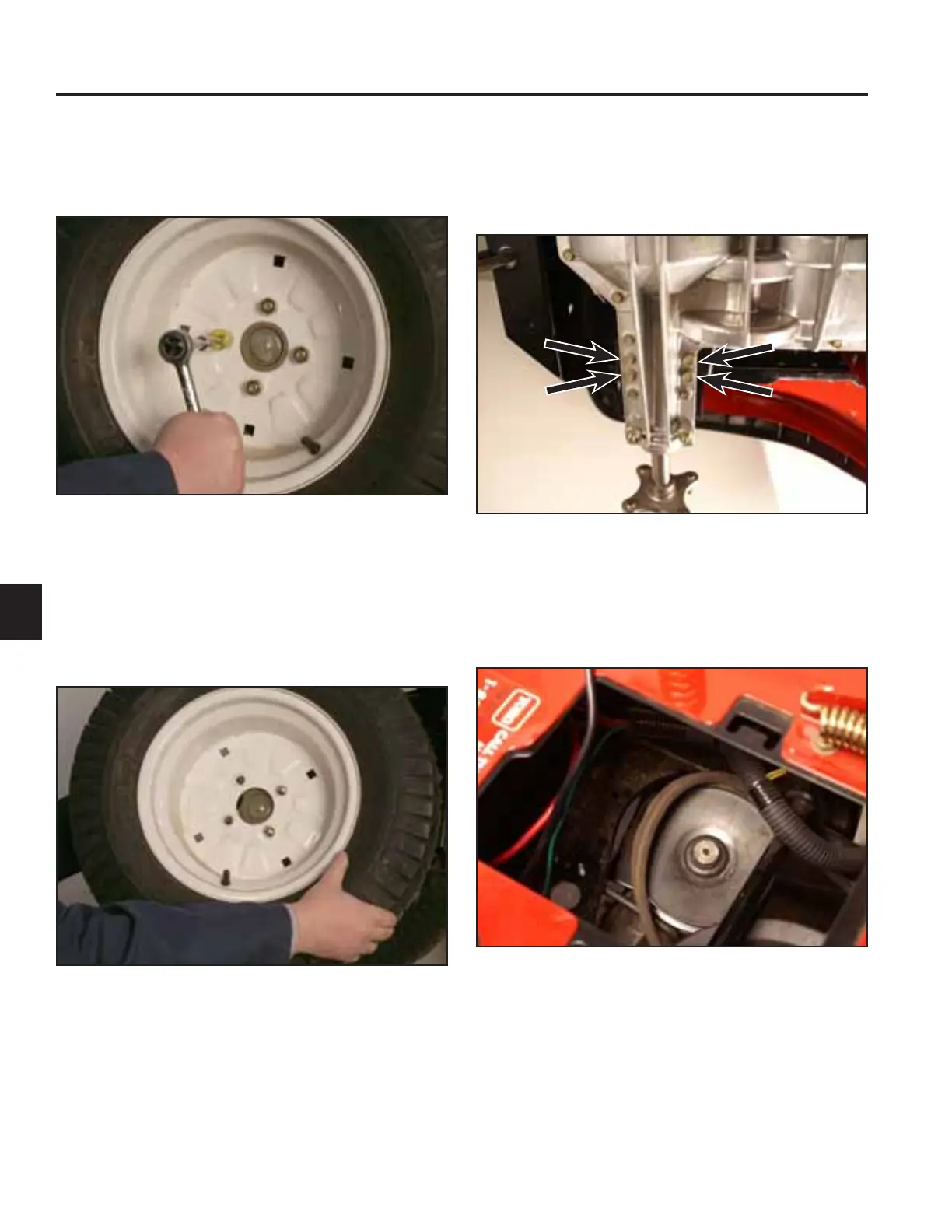

13. Raise the machine.
14. Remove the 4 bolts securing the variable speed
pulley assembly to the transmission (Fig. 469).
Fig 469 PICT-8525
15. Tilt the variable speed pulley forward and remove
the belt from it (Fig. 470).
Fig 470 PICT-7642
10. Loosen the 8 bolts securing the rear wheels to the
wheel hub assemblies (4 on the left and 4 on the
right) (Fig. 467).
Fig 467 PICT-7502a
11. Raise and support the rear of the machine.
12. Remove the 8 lug nuts and remove the 2 wheel
assemblies from the wheel hubs (Fig. 468).
Fig 468 PICT-7503a
