GEAR DRIVE SYSTEM
5-14 GT Series Tractors Service Manual
5

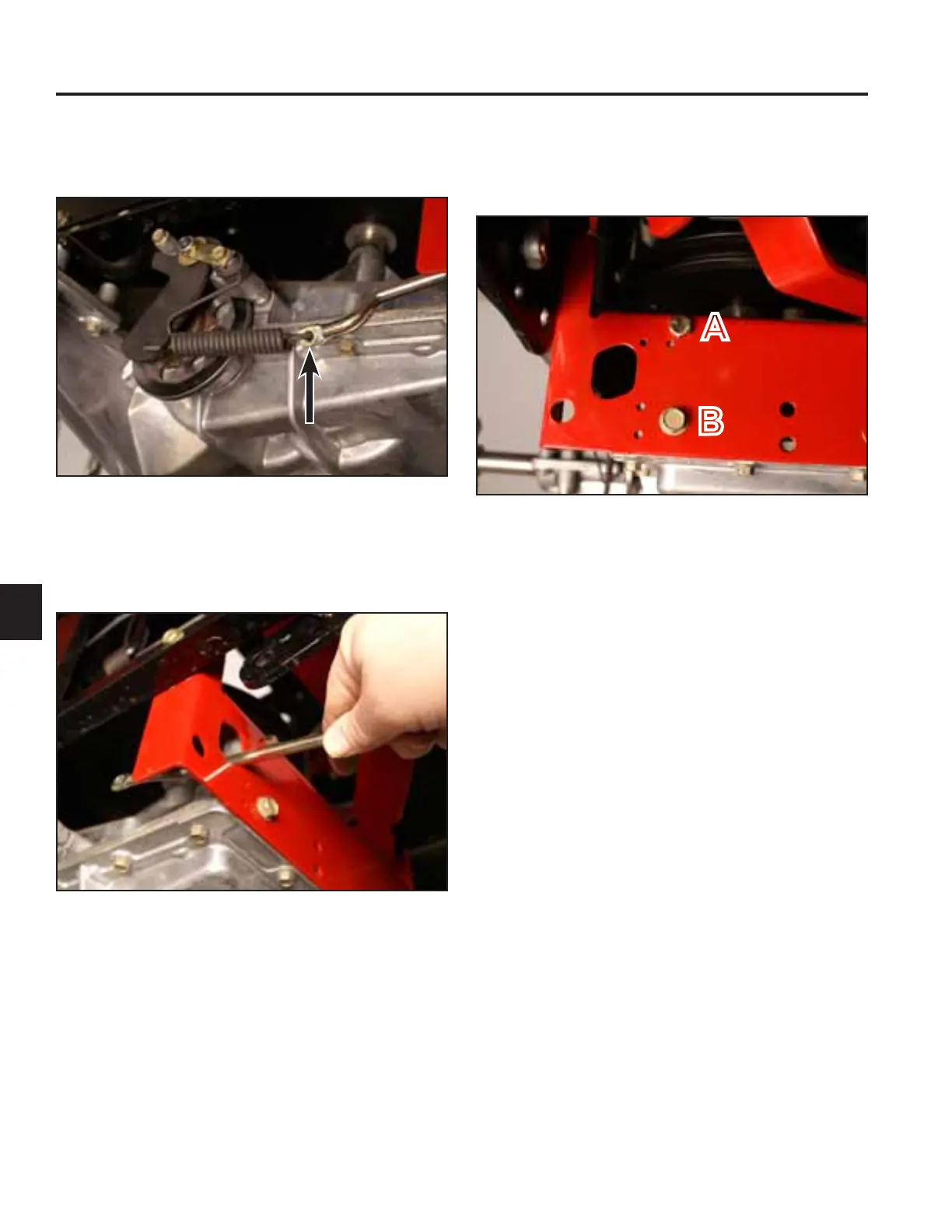

20. Unhook the spring from the rear end of the brake
control rod (Fig. 475).
22. Remove the bolt, nut and self tapping screw secur-
ing the front of the transmission to the transmission
bracket (Fig. 477).
Fig 475 PICT-7662
Fig 477 PICT-7668
A. Bolt and nut B. Self tapping screw
21. Remove the brake control rod (Fig. 476).
Fig 476 PICT-7666
A
B
