GEAR DRIVE SYSTEM
5-21GT Series Tractors Service Manual
5

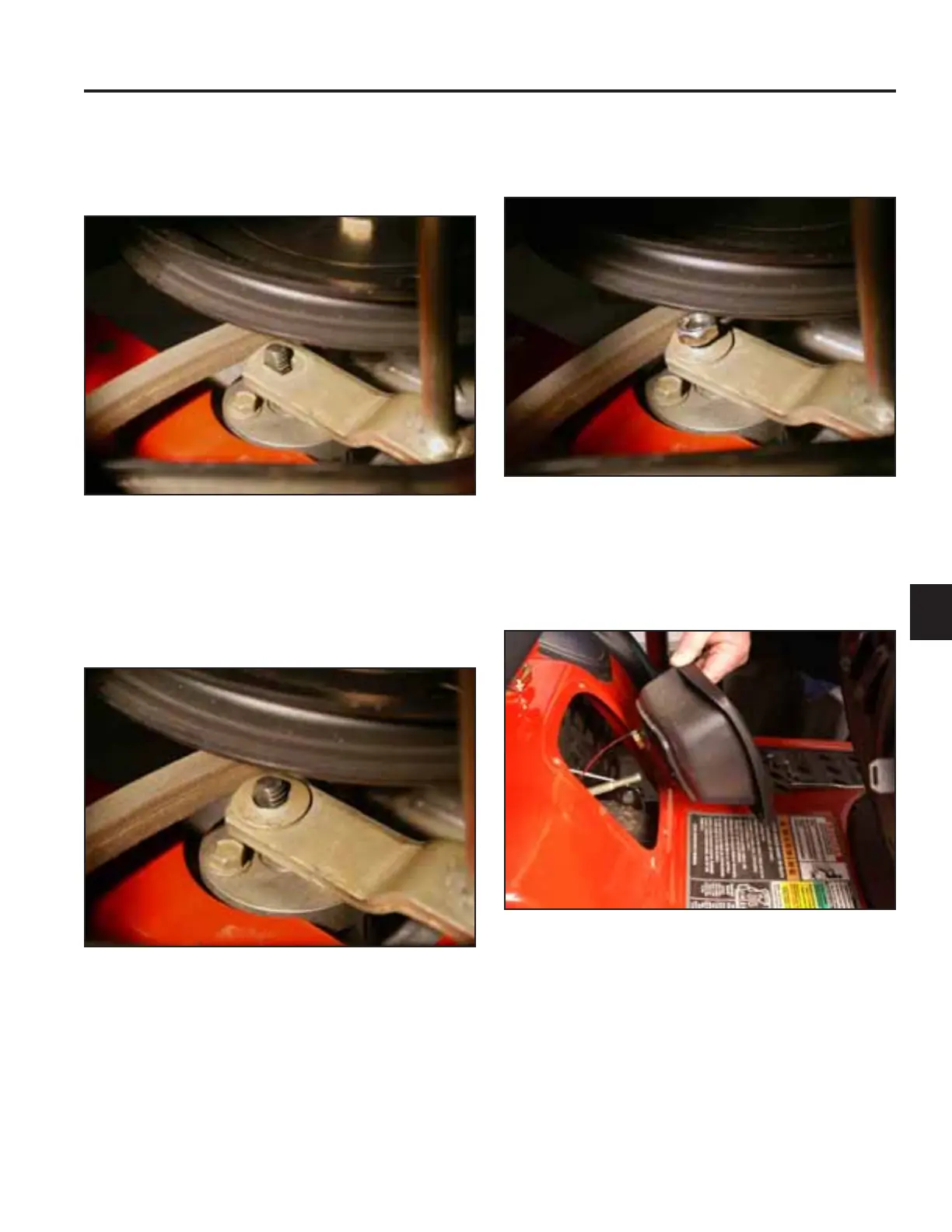

22. Slide the shift rod assembly onto the transmission
shift lever. Ensure the rod is in between the variable
speed drive belt (Fig. 502).
24. Install a nut securing the shift rod assembly to the
transmission shift lever (Fig. 504).
Fig 502 PICT-7708a
Fig 504 PICT-7710a
25. Position the shift cover plate into the fender (Fig.
505).
23. Slide a spring washer (center of the washer up, OD
of the washer down) onto the shift rod assembly
(Fig. 503).
Fig 505 PICT-7636
Fig 503 PICT-7709a
