GEAR DRIVE SYSTEM
5-20 GT Series Tractors Service Manual
5
17. Route the belt up in front of the transmission toward
the top of the transmission (Fig. 498).
19. Install 4 bolts securing the variable speed pulley
assembly to the transmission (Fig. 500).

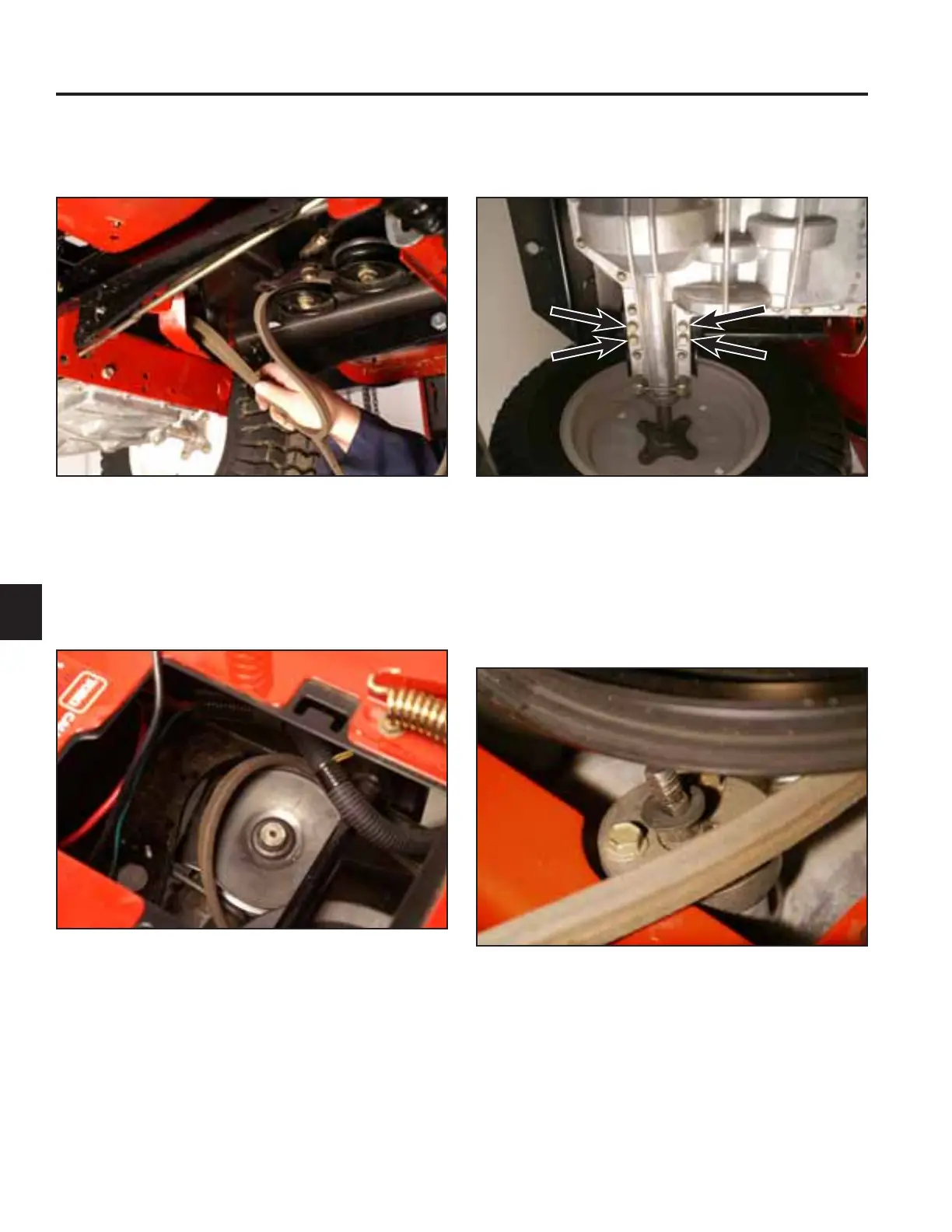

Fig 498 PICT-7648
Fig 500 PICT-7640
20. Lower the machine.
 6OLGHDÀDWZDVKHUZLWKDQREORQJFHQWHUKROHRQWR
the transmission shift lever (Fig. 501).
18. Tilt the variable speed pulley forward and route the
drive belt around it into the lower pulley groove (Fig.
499).
Fig 501 PICT-7705a
Fig 499 PICT-7642
