GEAR DRIVE SYSTEM
5-19GT Series Tractors Service Manual
5

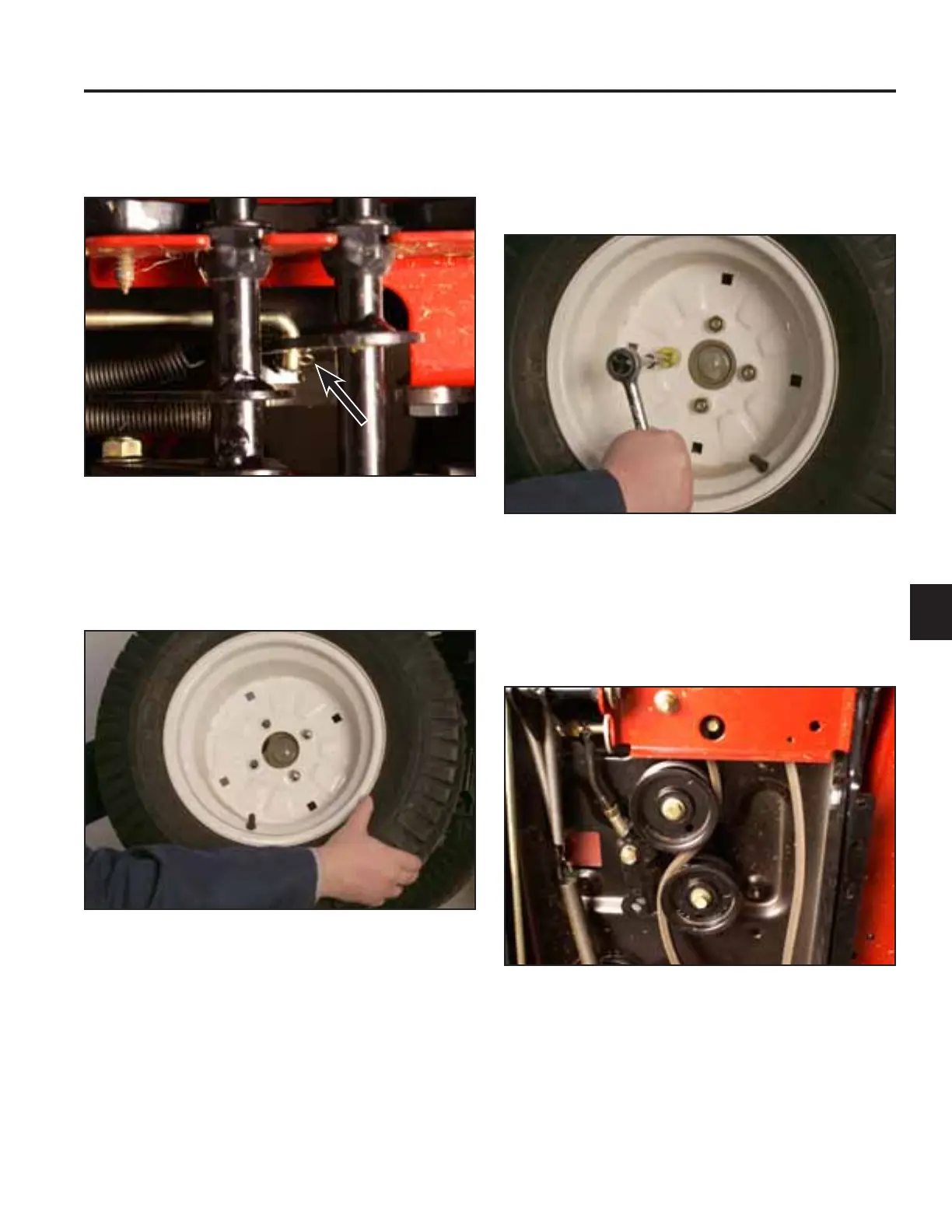

12. Install a cotter pin securing the front end of the brake
control rod to the brake linkage (Fig. 494).
14. Lower the machine.
15. Tighten the 8 lug nuts securing the rear wheels to
the wheel hub assemblies (Fig. 496).
Fig 494 PICT-7659
Fig 496 PICT-7502a
16. Route the transmission drive belt between the two
ÀDWLGOHUSXOOH\VRQWKHFHQWHUGRXEOHLGOHUEUDFNHW
(Fig. 497).
13. Install the 2 rear wheel assemblies onto the wheel
hubs. Install 8 lug nuts to secure (Fig. 495).
Fig 497 PICT-7702
Fig 495 PICT-7503a
