GEAR DRIVE SYSTEM
5-18 GT Series Tractors Service Manual
5

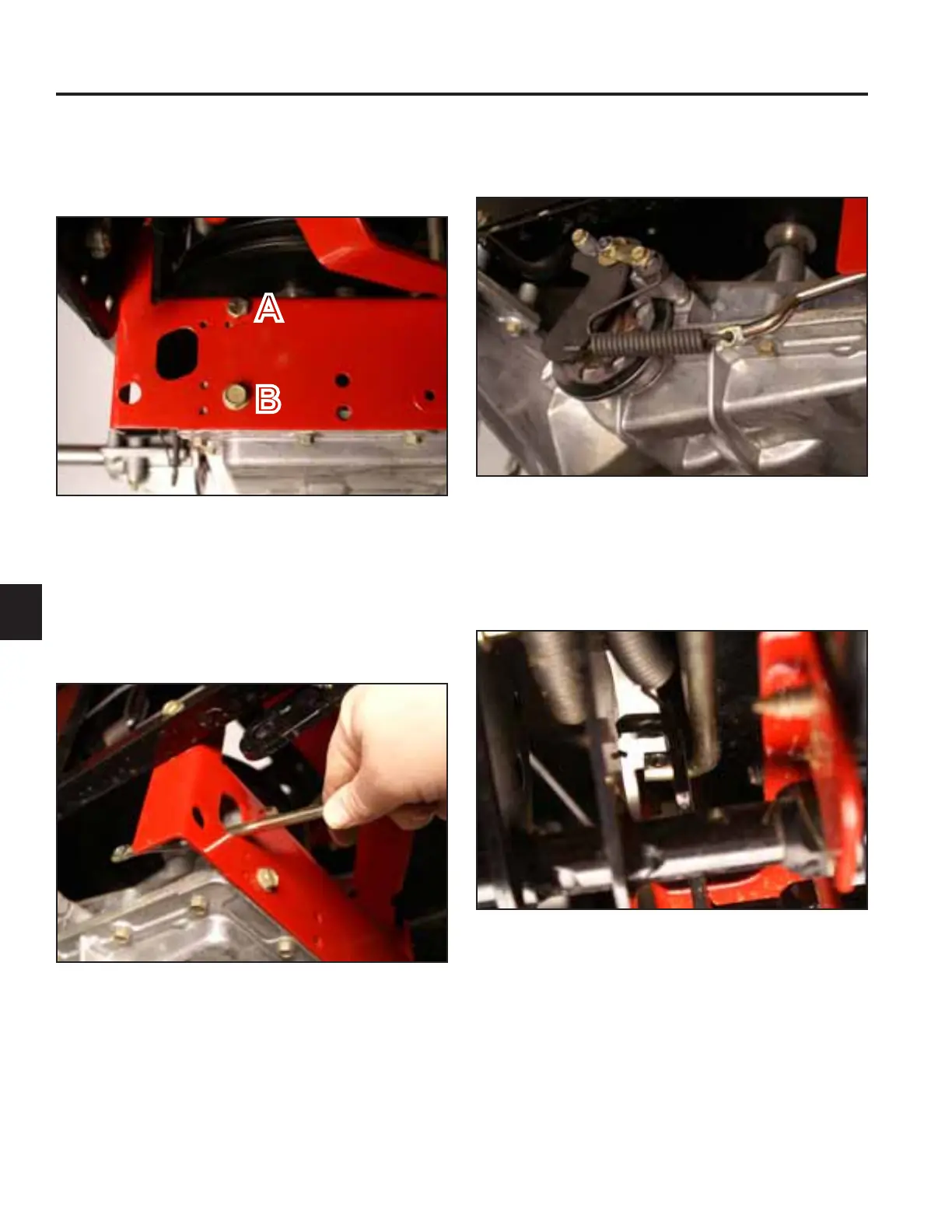

8. Install a bolt, nut and a self tapping screw to secure
the front of the transmission to the transmission
bracket (Fig. 490).
10. Hook the brake control spring to the rear end of the
brake control rod (Fig. 492).
Fig 490 PICT-7667
Fig 492 PICT-7662
11. Insert the front end of the brake control rod into the
brake linkage (Fig. 493).
9. Insert the brake control rod through the hole in the
transmission bracket (Fig. 491).
A. Bolt and nut B. Self tapping screw
Fig 493 PICT-7698
Fig 491 PICT-7666
A
B
