GEAR DRIVE SYSTEM
5-17GT Series Tractors Service Manual
5

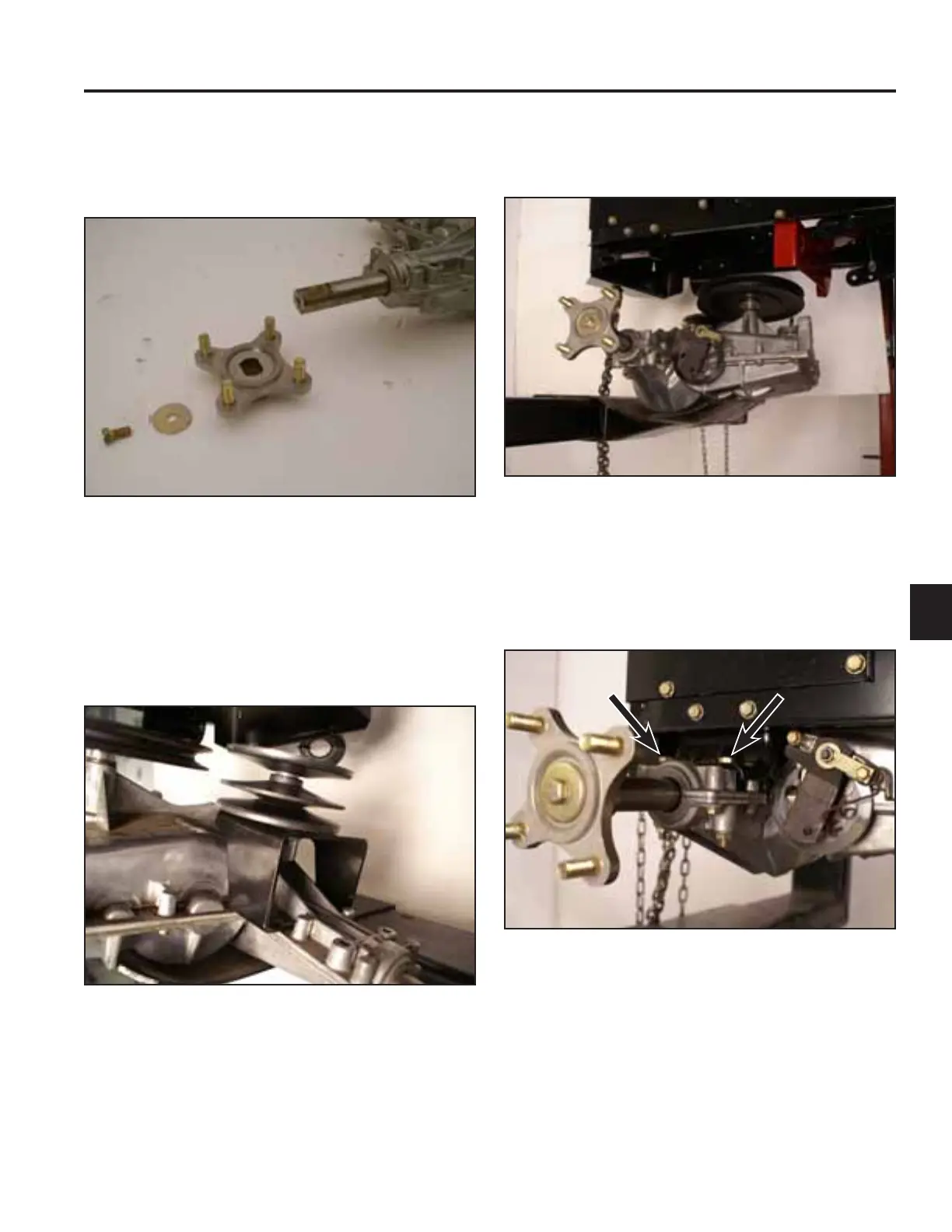

3. Slide the wheel hub onto the axle shaft. Install a bolt
and washer to secure the wheel hub assembly to the
transmission axle shaft (Fig. 486).
6. Carefully raise and support the transmission in the
machine (Fig. 488).
Fig 486 PICT-7679a
Fig 488 PICT-7677
7. Install 4 bolts and nuts securing the sides of the
transmission to the frame (2 bolts and 2 nuts on
each side) (Fig. 489).
4. Repeat step 2 to install the opposite wheel hub
assembly.
5. Position the variable speed pulley onto the trans-
mission (Fig. 487).
Fig 489 PICT-7669
Fig 487 PICT-7696
