GEAR DRIVE SYSTEM
5-23GT Series Tractors Service Manual
5

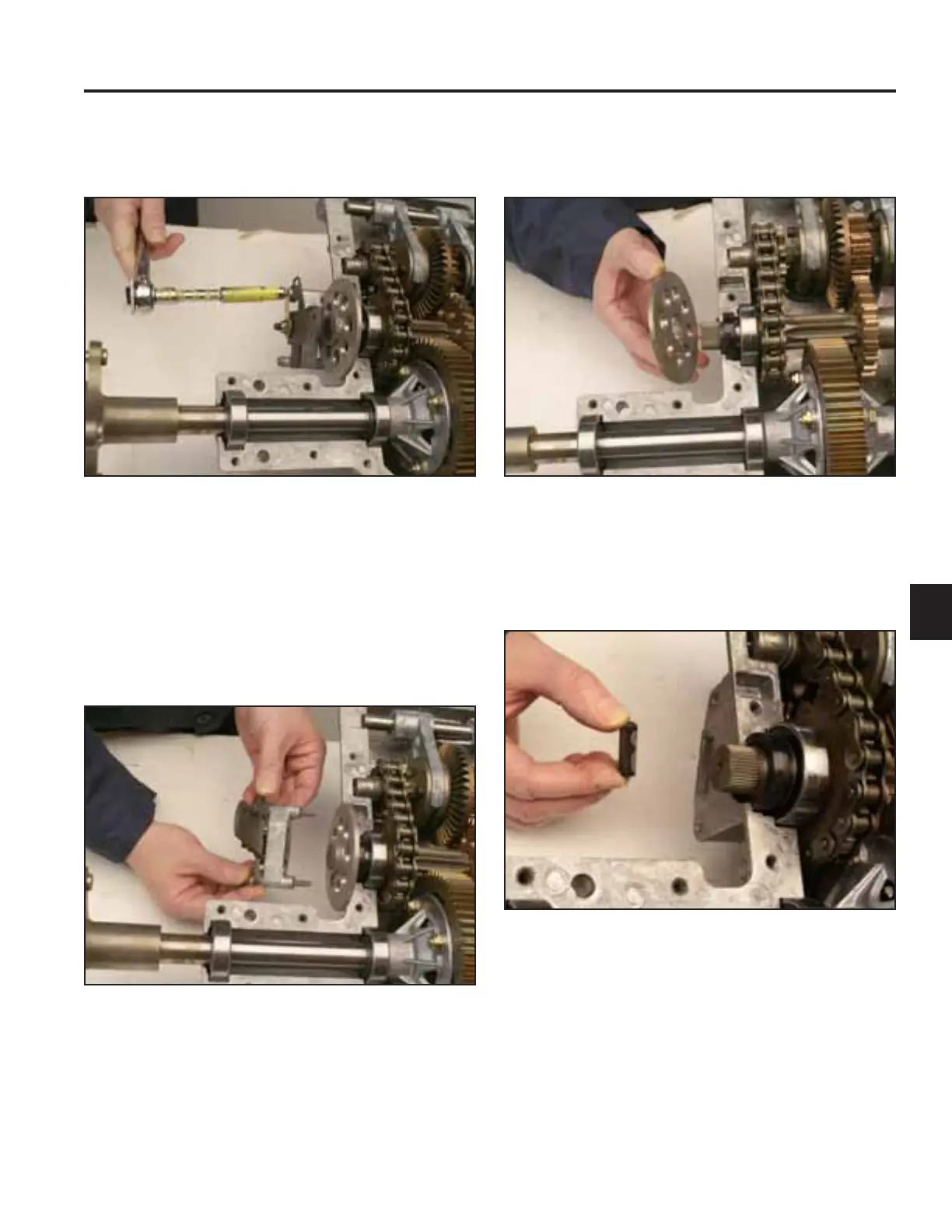

5. Remove the brake disc from the transmission shaft
(Fig. 512).
3. Remove the 2 bolts securing the brake assembly to
the transmission housing (Fig. 510).
Fig 512 PICT-8280aFig 510 PICT-8277a
6. Remove the puck from the transmission housing
(Fig. 513).
4. Remove the brake assembly from the transmission
(Fig. 511).
Note: Some transmissions have 2 washers (1 on
each bolt) between the brake assembly and
transmission housing.
Fig 513 PICT-8281
Fig 511 PICT-8278a
