GEAR DRIVE SYSTEM
5-24 GT Series Tractors Service Manual
5

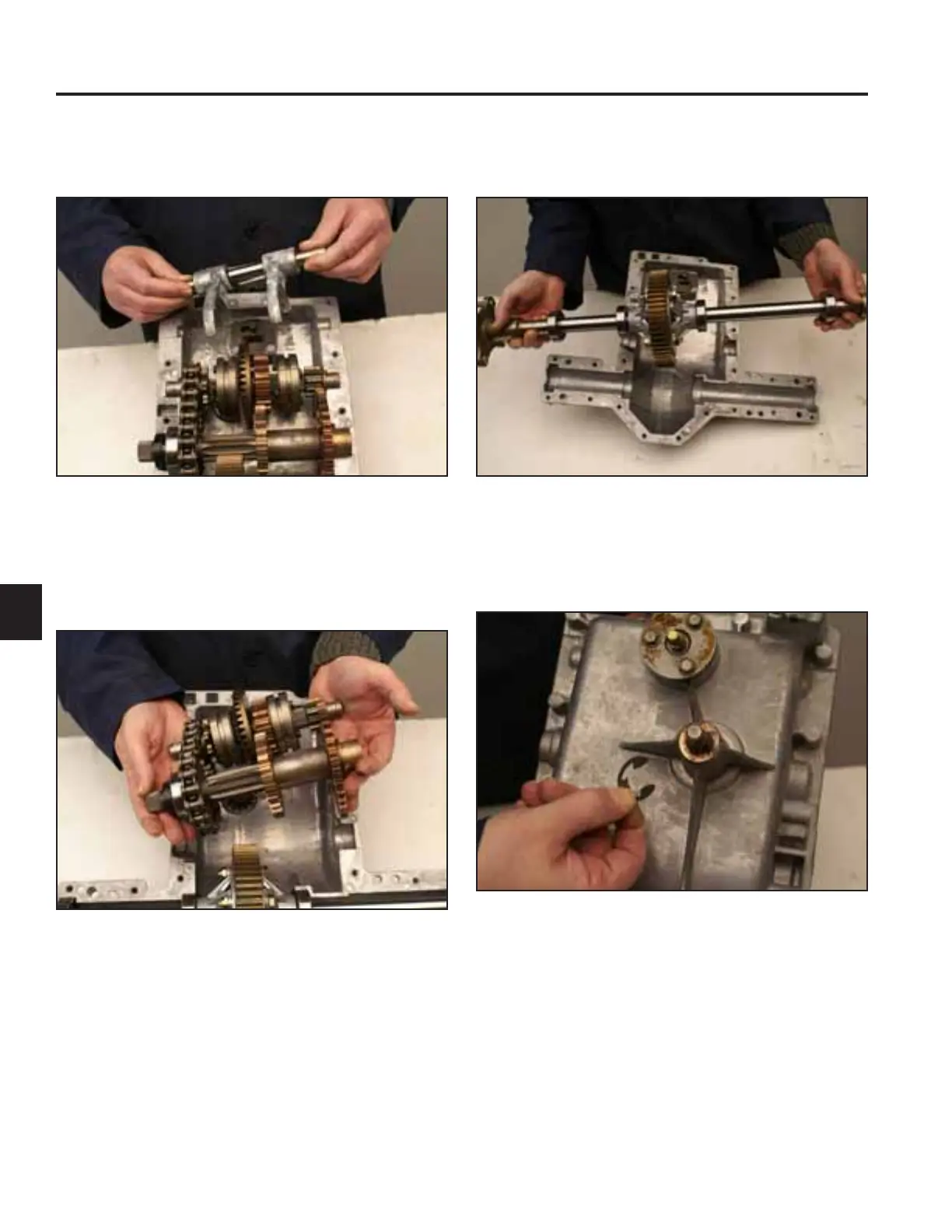

7. Remove the shift fork assembly from the trans-
mission housing (Fig. 514).
9. Remove the differential axle assembly from the
housing (Fig. 516).
Fig 514 PICT-8283
Fig 516 PICT-8285
10. Remove the e-ring from the input shaft (Fig. 517).
8. Remove the drive shaft and right hand output shaft
assemblies from the housing (Fig. 515).
Fig 517 PICT-8286
Fig 515 PICT-8284
