GEAR DRIVE SYSTEM
5-31GT Series Tractors Service Manual
5

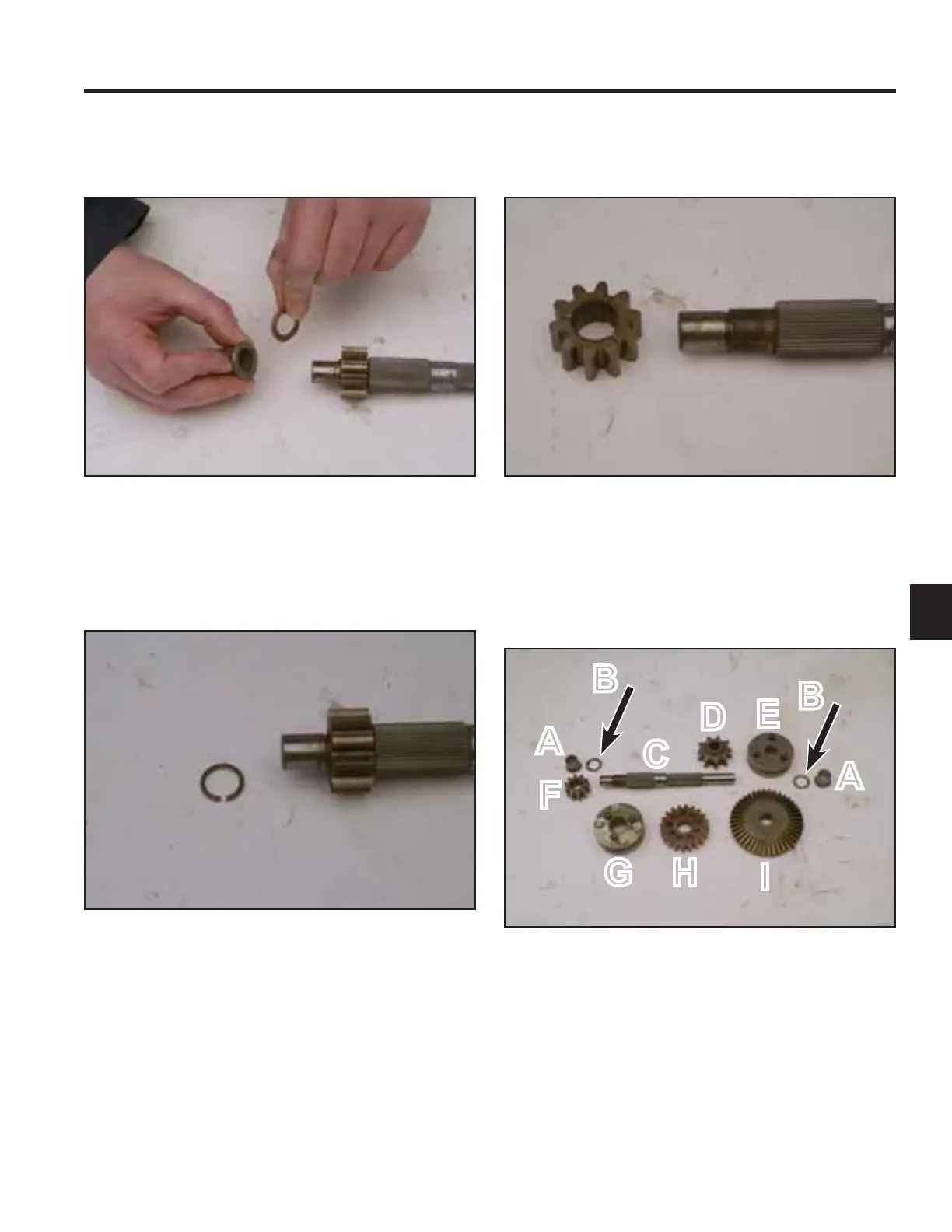

 5HPRYHWKHÀDQJHEHDULQJDQGÀDWZDVKHUIURPWKH
opposite end of the drive shaft (Fig. 541).
38. Remove the 10 tooth spur gear from the drive shaft
(Fig. 543).
Fig 541 PICT-8329a Fig 543 PICT-8333a
 ,QVSHFWWKHGULYHVKDIWÀDQJHEHDULQJVZDVKHUV
sprocket, spur gears, snap ring and collars. Replace
if worn or damaged (Fig. 544):
37. Remove the snap ring from the drive shaft (Fig.
542).
Fig 544 PICT-8334a
Fig 542 PICT-8331a
A. Flange bearing (2) F. 10 tooth spur gear
B. Flat washer (2) G. Collar assembly
C. Drive shaft H. 20 tooth spur gear
D. 9 tooth sprocket I. 41 tooth spur gear
E. Hi-Lo Collar
A
A
E
I
B
B
F
C
G
D
H
