GEAR DRIVE SYSTEM
5-32 GT Series Tractors Service Manual
5

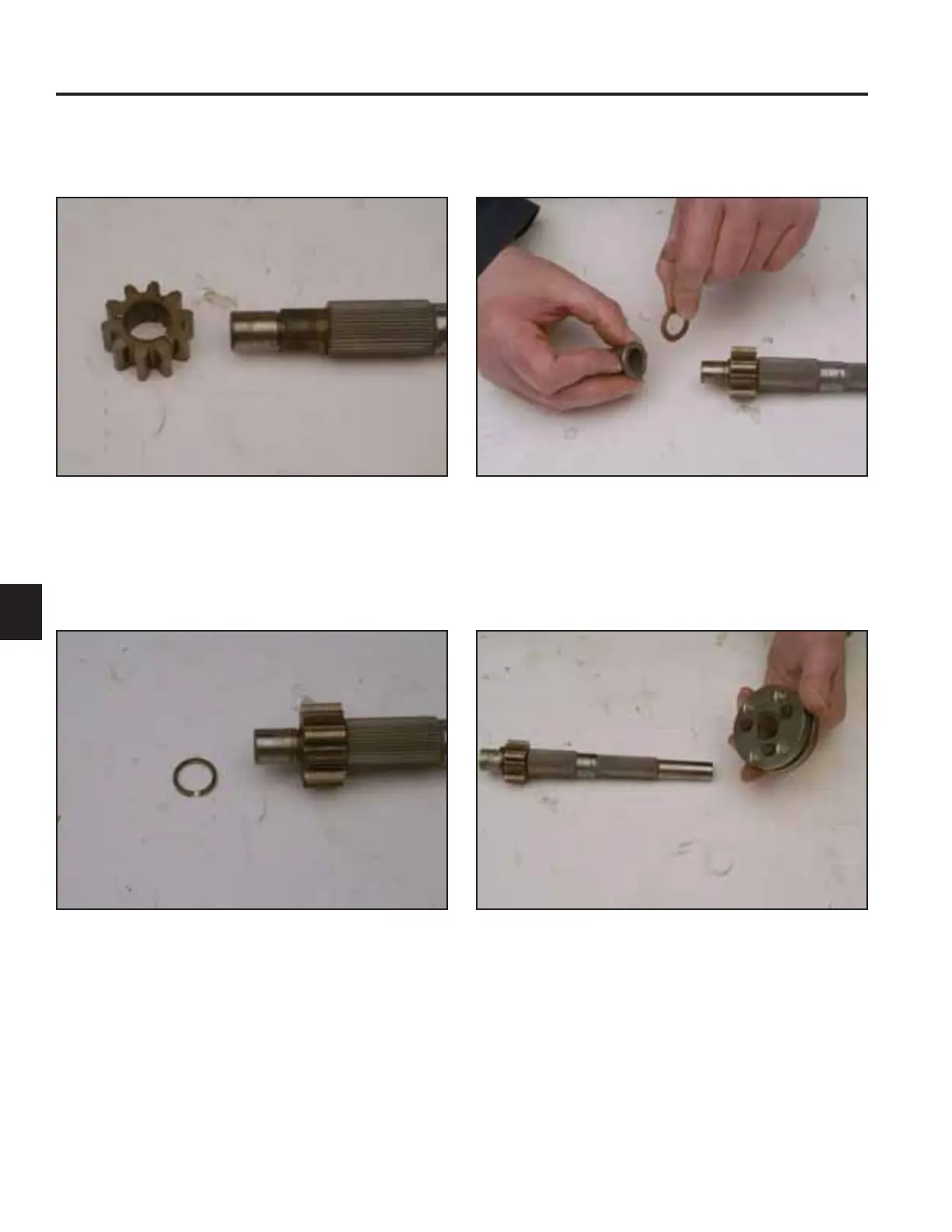

40. Slide a 10 tooth spur gear onto the drive shaft (Fig.
545).
 6OLGHDZDVKHUDQGÀDQJHEHDULQJRQWRWKHHQGRI
the drive shaft (Fig. 547).
Fig 545 PICT-8333a
Fig 547 PICT-8329
43. Slide a hi-lo collar assembly onto the drive shaft
(Fig. 548).
41. Install a snap ring onto the drive shaft securing the
10 tooth spur gear (Fig. 546).
Fig 548 PICT-8327a
Fig 546 PICT-8331a
