GEAR DRIVE SYSTEM
5-49GT Series Tractors Service Manual
5

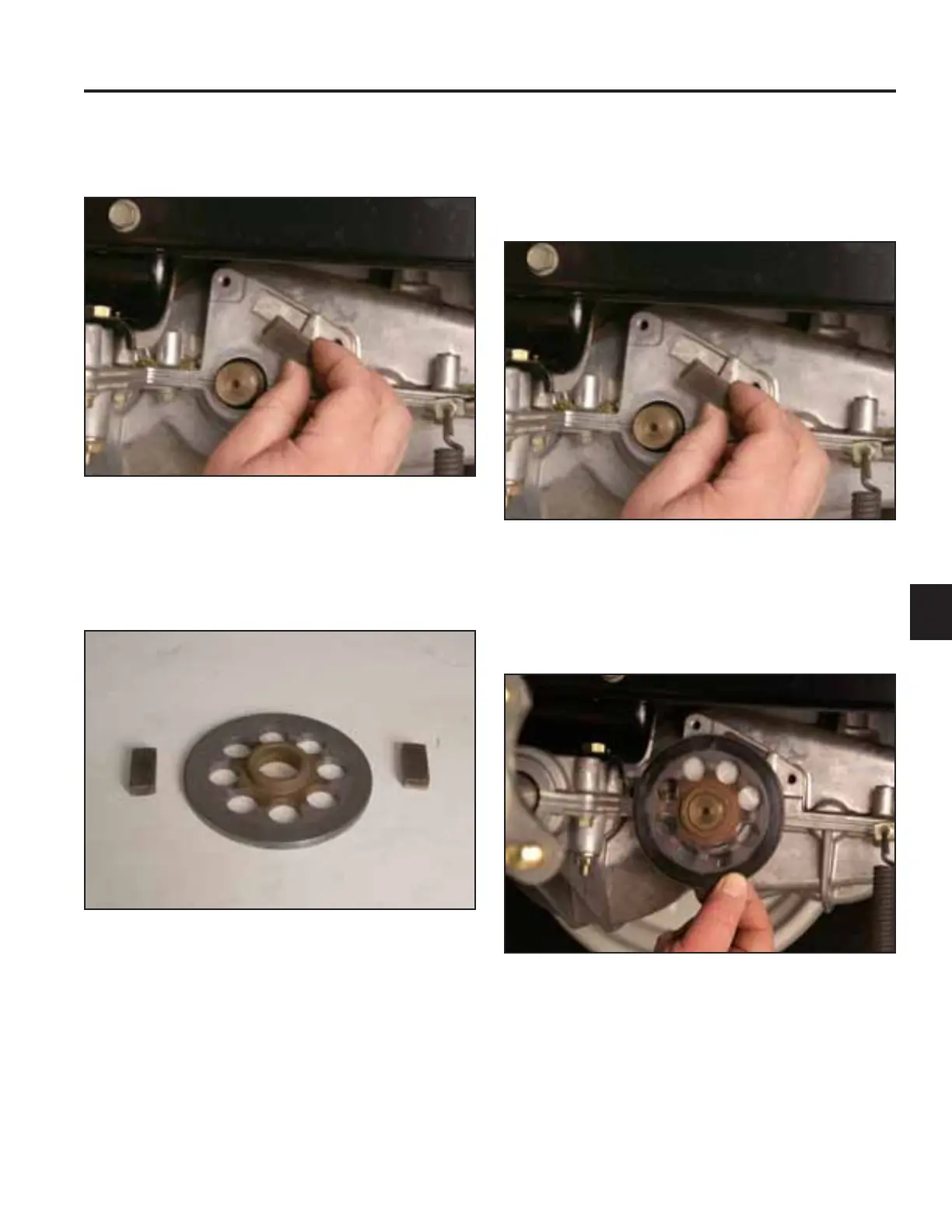

9. Remove the puck from the transmission housing
(Fig. 613).
Fig 613 PICT-7723a
10. Inspect the brake disc and 2 brake pucks. Replace if
damaged or worn (Fig. 614).
Fig 614 PICT-7724a
Brake Puck Installation
1. Install a puck into the transmission housing (Fig.
615).
Fig 615 PICT-7723a
2. Slide the brake disc onto the transmission shaft (Fig.
616).
Fig 616 PICT-7725
