GEAR DRIVE SYSTEM
5-51GT Series Tractors Service Manual
5

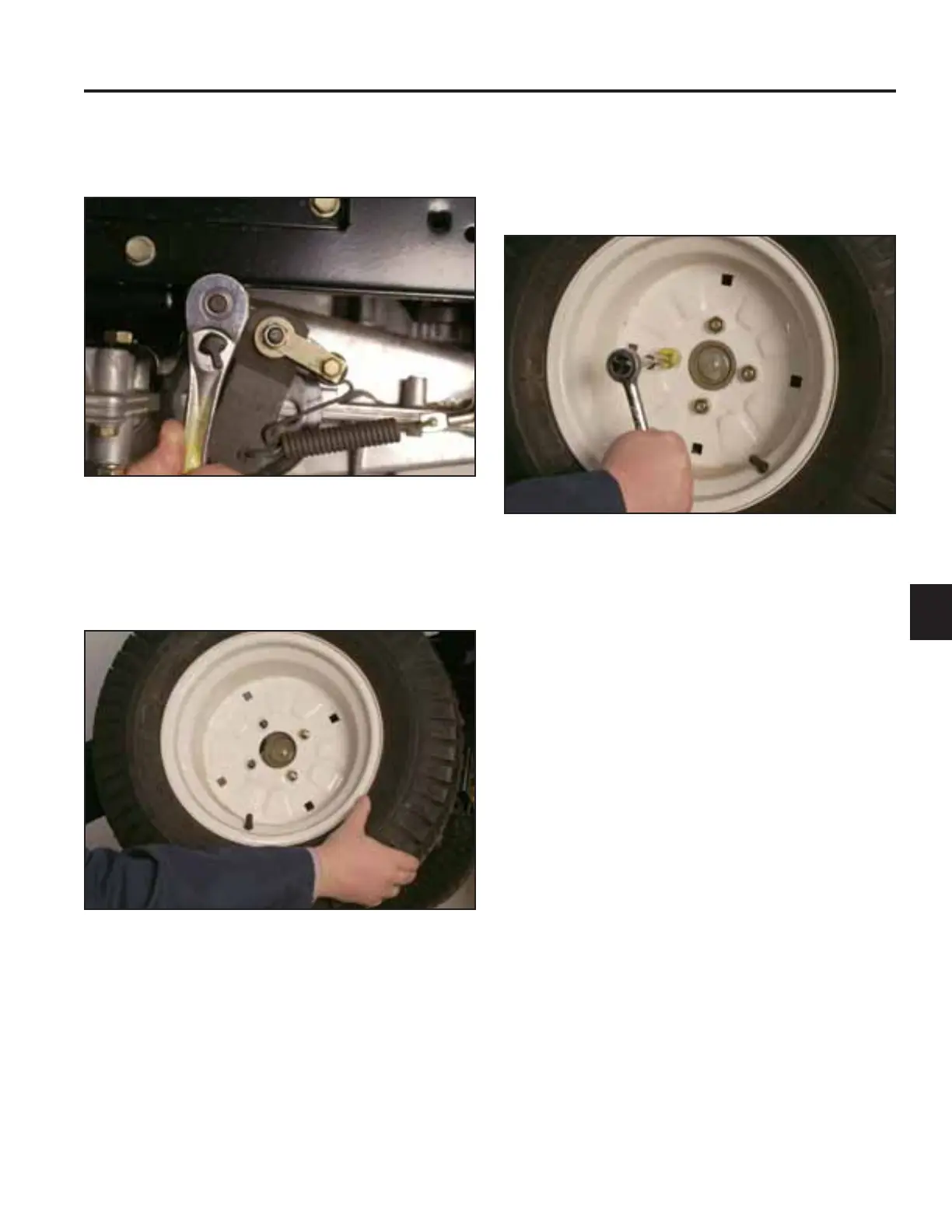

7. Position the brake assembly to the transmission and
install the 2 bolts to secure it (Fig. 621).
Fig 621 PICT-7717a
8. Slide the wheel onto the wheel hub assembly and
install 4 lug nuts (Fig. 622).
Fig 622 PICT-7503a
9. Lower the machine.
10. Tighten the 4 lug nuts to secure the rear wheel to the
wheel hub assembly (Fig. 623).
Fig 623 PICT-7502a
