GEAR DRIVE SYSTEM
5-53GT Series Tractors Service Manual
5
Autodrive Pedal Adjustment
1. Remove the mower deck. Refer to “50” Mower Deck
Removal” on page 7-6.

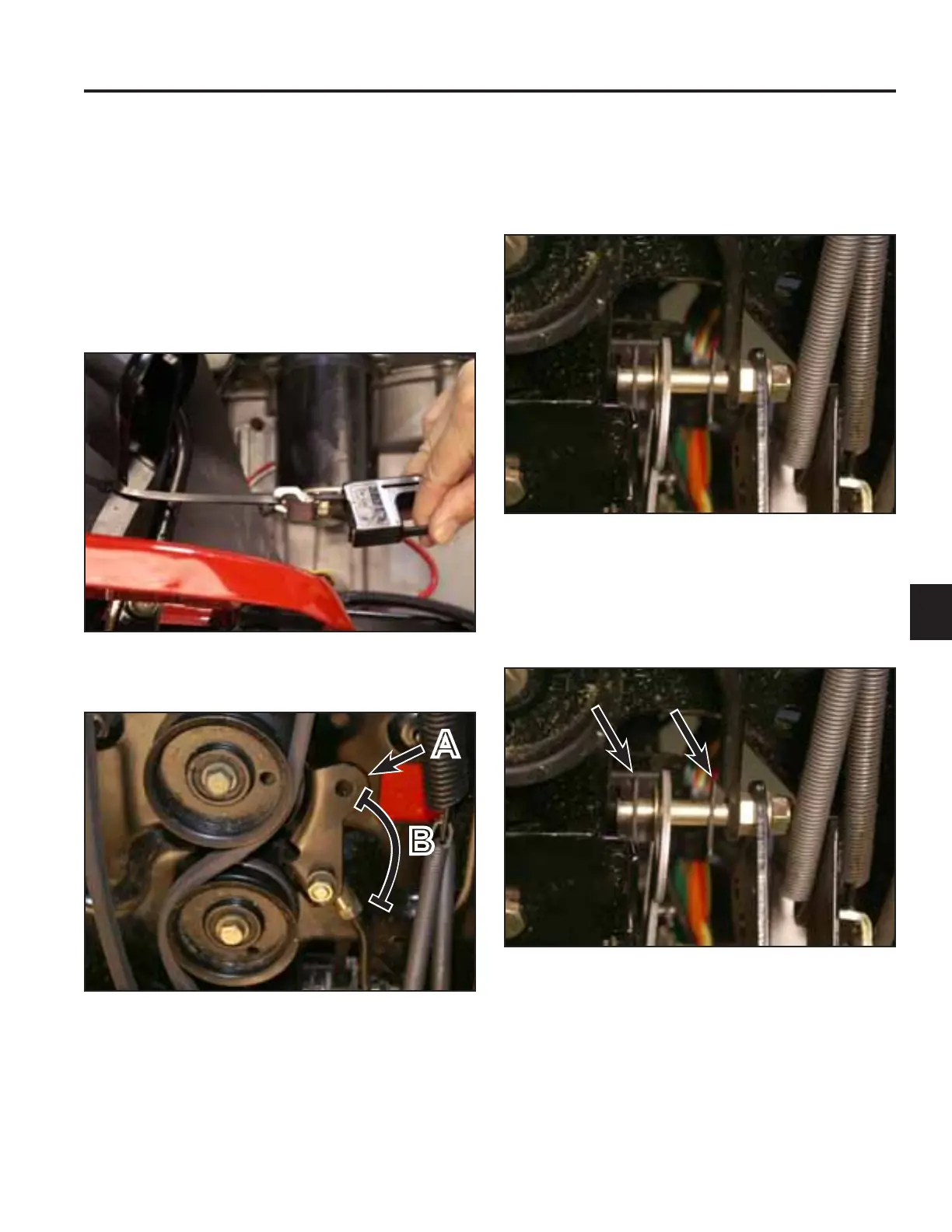

2. The Autodrive pedal is properly adjusted when the
hole found in the double idler bracket has approx-
imately 1-3/8” (3.5cm) of travel with 10 lbs. (4.5kg)
of pressure applied to the Autodrive pedal (Fig. 626
and Fig. 627).
Fig 626 PICT-7670
Fig 627 PICT-7673a
A. Double idler bracket B. 1-3/8” (3.5cm) travel
distance
A
B
3. If adjustment is needed:
4. Locate the speed control assembly on the underside
of the steering support bracket (Fig. 628).
Fig 628 PICT-7682a
5. Remove both hairpin cotters from the main pin on
the speed control assembly (Fig. 629).
Fig 629 PICT-7682a
