GEAR DRIVE SYSTEM
5-54 GT Series Tractors Service Manual
5

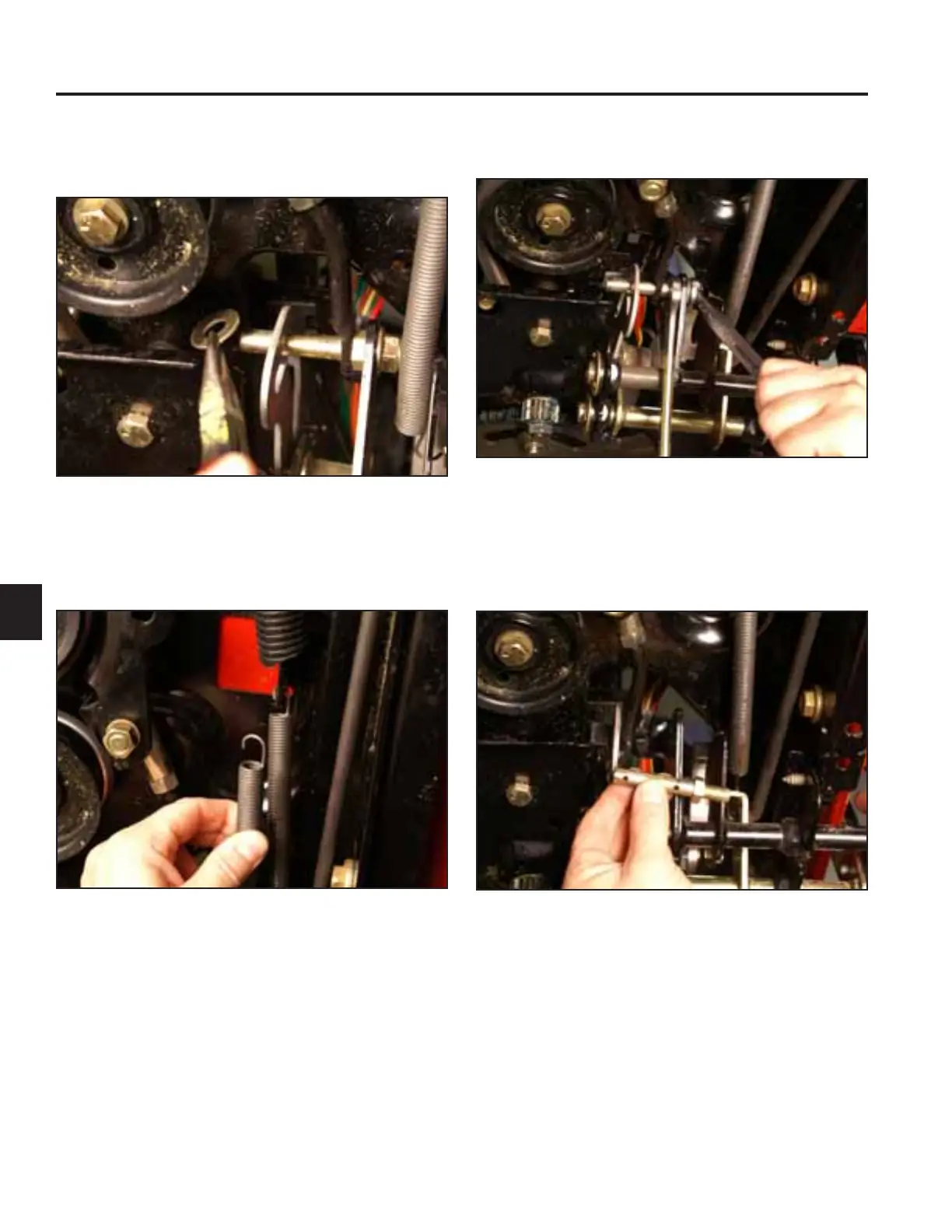

6. Remove the washer from the speed control as-
sembly (Fig. 630).
Fig 630 PICT-7683
7. Remove the Autodrive pedal return spring (Fig. 631).
Fig 631 PICT-7684
8. Remove the lock nut from the main pin (Fig. 632).
Fig 632 PICT-7691
9. Remove the main pin from the speed control as-
sembly (Fig. 633).
Fig 633 PICT-7692
