HYDROSTATIC DRIVE SYSTEM
6-7GT Series Tractors Service Manual
6

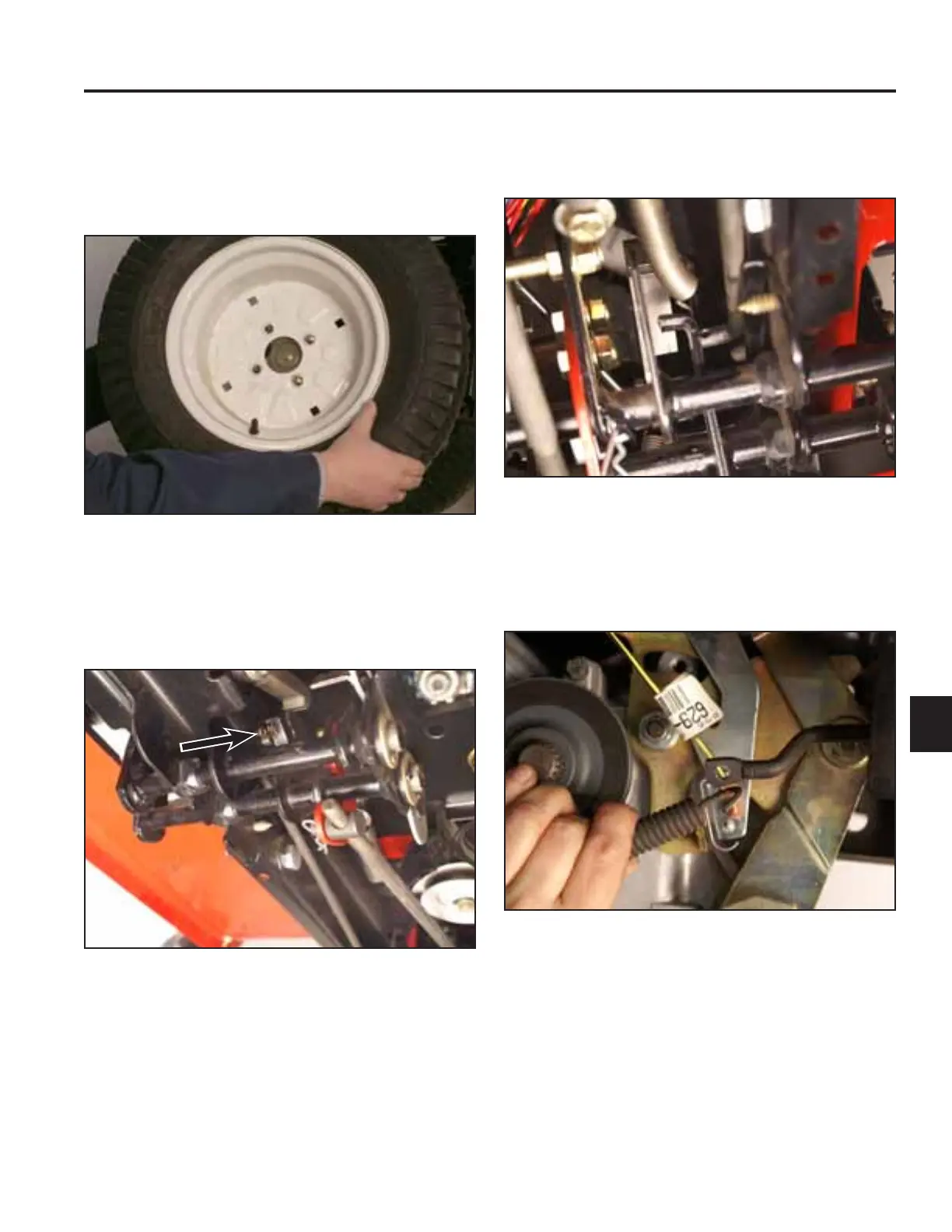

3. Raise and support the rear of the machine.
4. Remove the 8 lug nuts and remove the 2 wheel
assemblies from the wheel hubs (Fig. 662).
6. Remove the brake control rod from the linkage (Fig.
664).
Fig 662 PICT-7503a
Fig 664 PICT-7513
7. Unhook the spring from the rear end of the brake
control rod (Fig. 665).
5. Remove the cotter pin securing the front end of the
brake control rod to the brake linkage (Fig. 663).
Fig 665 PICT-7518
Fig 663 PICT-7512
