Toro GT series User Manual

HYDROSTATIC DRIVE SYSTEM
6-8 GT Series Tractors Service Manual
6

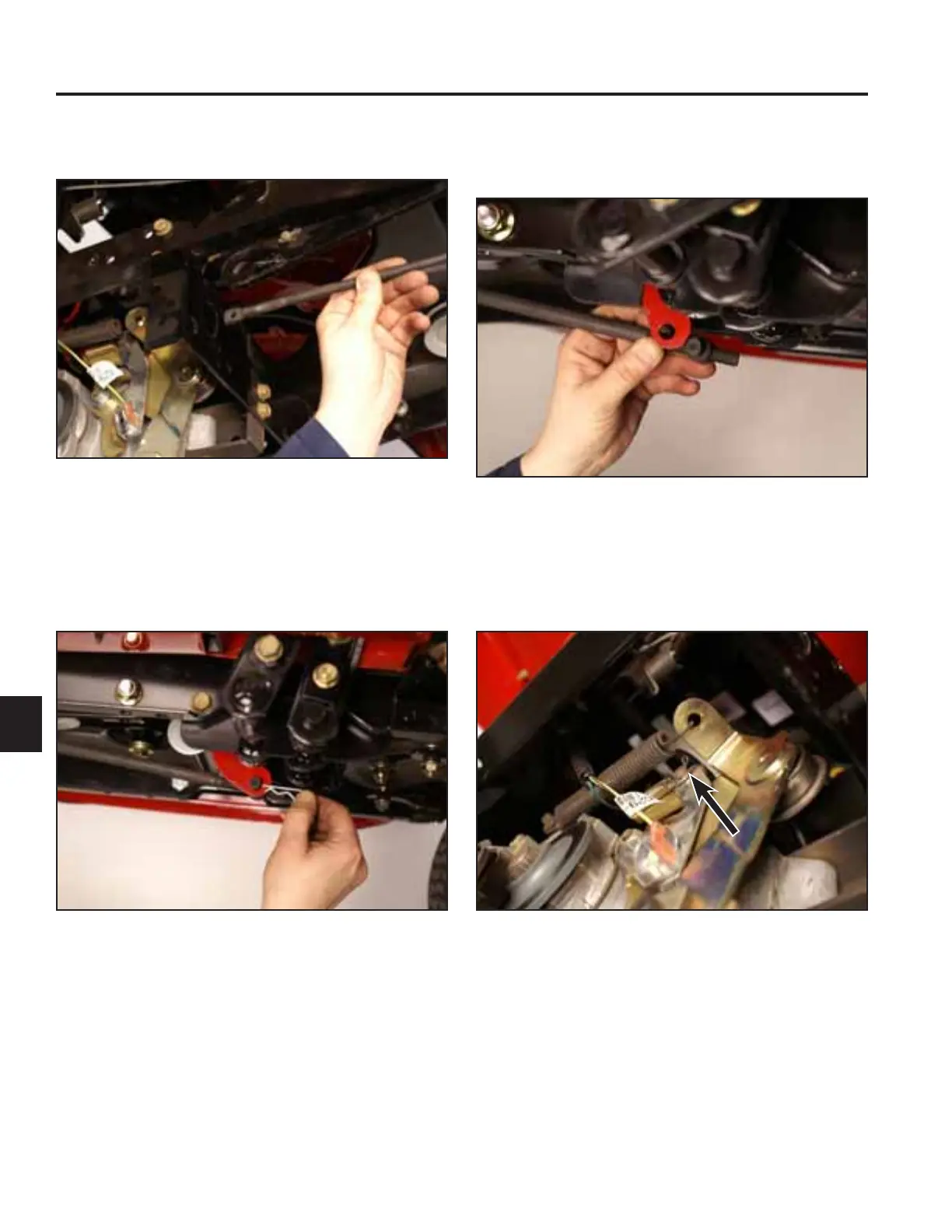

8. Remove the brake control rod (Fig. 666). 10. Remove the speed control rod trunnion from the
speed control linkage (Fig. 668).
Fig 666 PICT-7521
Fig 668 PICT-7523
11. Remove the cotter pin from the rear end of the
speed control rod (Fig. 669).
9. Remove the hairpin cotter securing the front end of
the speed control rod to the speed control linkage
(Fig. 667).
Fig 669 PICT-7527
Fig 667 PICT-7522
