HYDROSTATIC DRIVE SYSTEM
6-9GT Series Tractors Service Manual
6

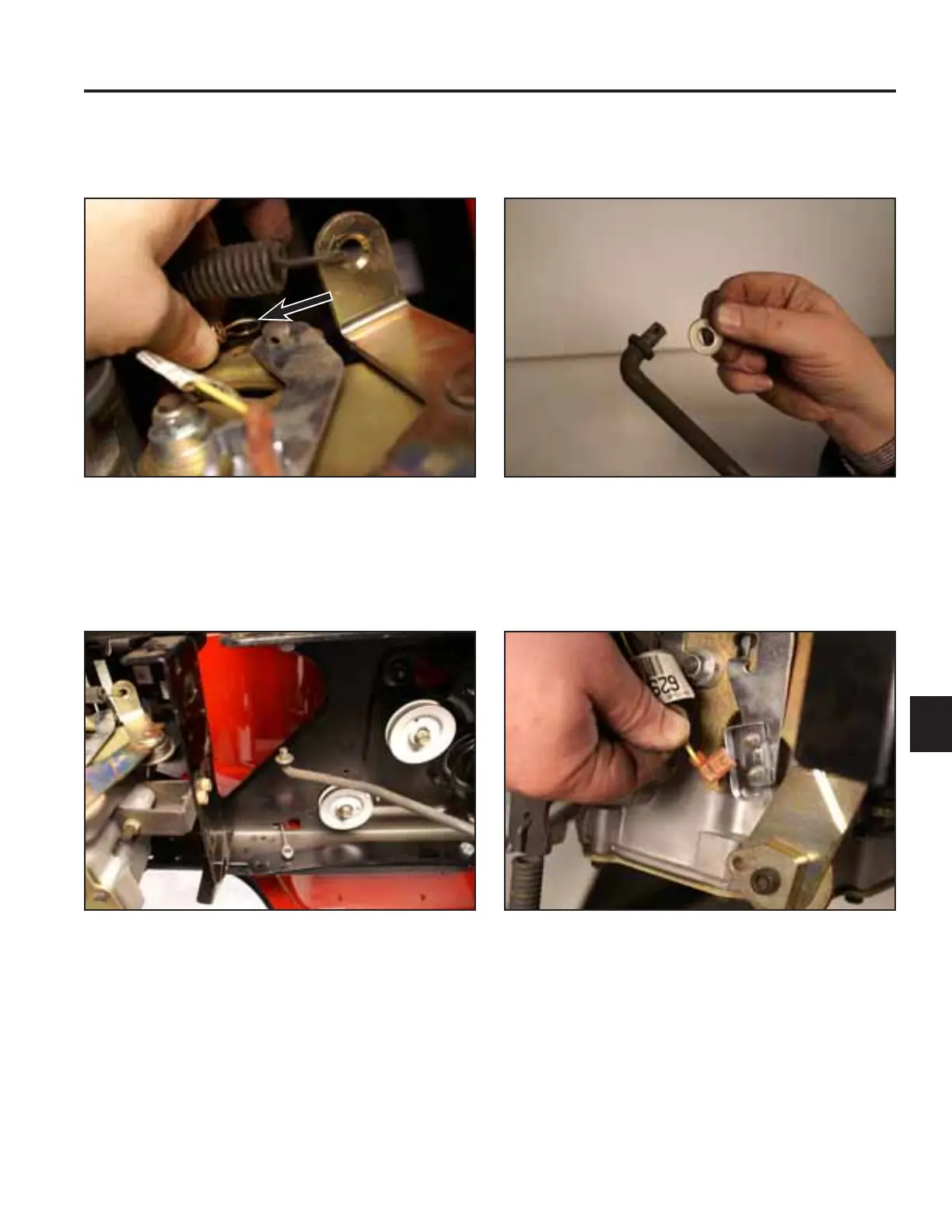

12. Remove the spring from the speed control rod and
transmission (Fig. 670).
14. Remove the washer from the speed control rod (Fig.
672).
Fig 670 PICT-7529 Fig 672 PICT-7532
15. Unplug the harness wire from actuator bracket
spring switch (Fig. 673).
13. Remove the speed control rod from the transmission
linkage and remove it from the machine (Fig. 671).
Fig 673 PICT-7534Fig 671 PICT-7530
