HYDROSTATIC DRIVE SYSTEM
6-11GT Series Tractors Service Manual
6

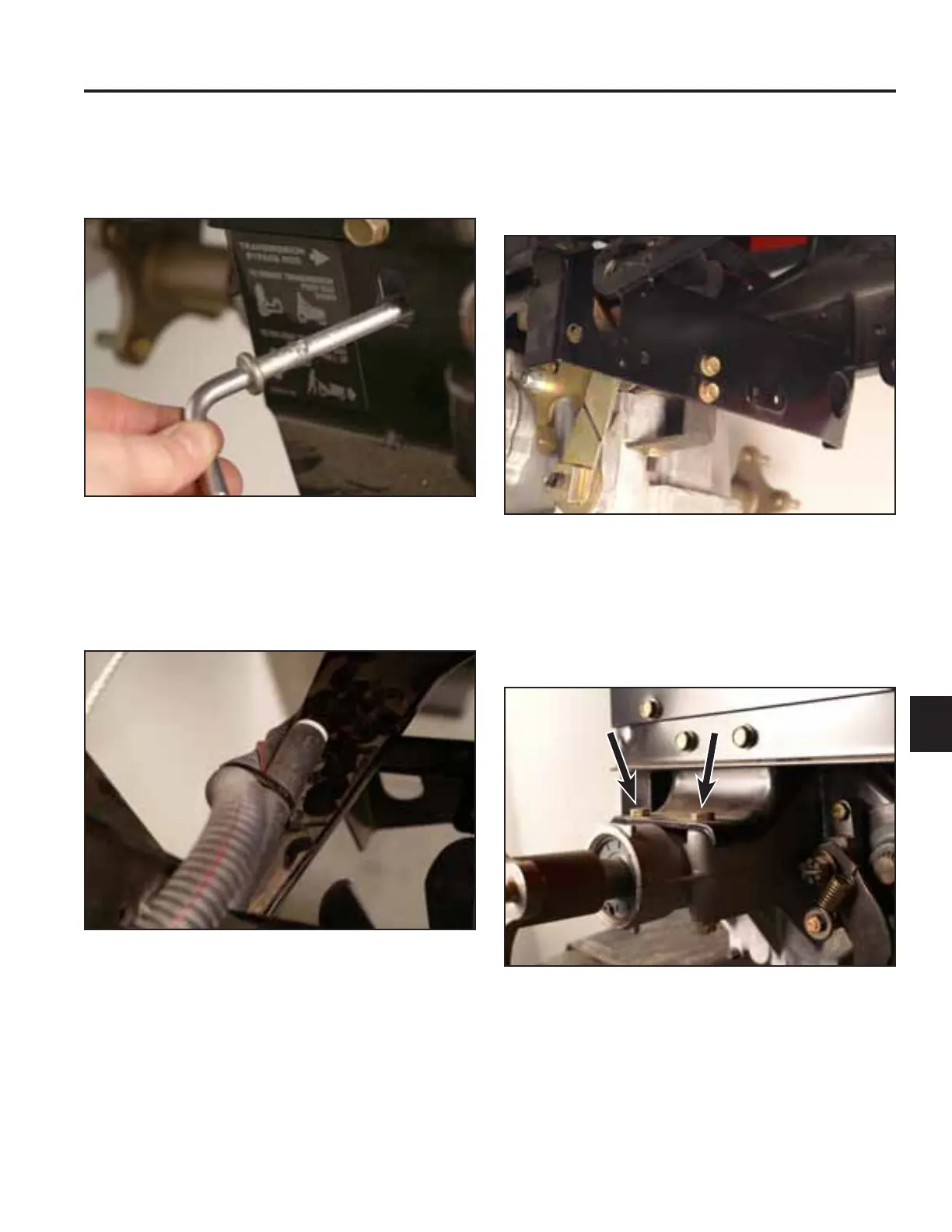

20. Remove the bypass lever from the bypass bracket
on the transmission and remove the lever from the
machine (Fig. 678).
22. Secure and support the transmission.
23. Remove the 2 bolts securing the front of the hydro-
static transmission to the frame (Fig. 680).
Fig 678 PICT-7559a
Fig 680 PICT-7551
24. Remove the 4 bolts and nuts securing the sides of
the hydrostatic transmission to the frame (2 bolts on
each side) (Fig. 681).
21. Remove the cable tie securing the transmission vent
hose to the frame (Fig. 679).
Fig 681 PICT-7554
Fig 679 PICT-7561
