Toro GT series - Page 203

HYDROSTATIC DRIVE SYSTEM
6-16 GT Series Tractors Service Manual
6

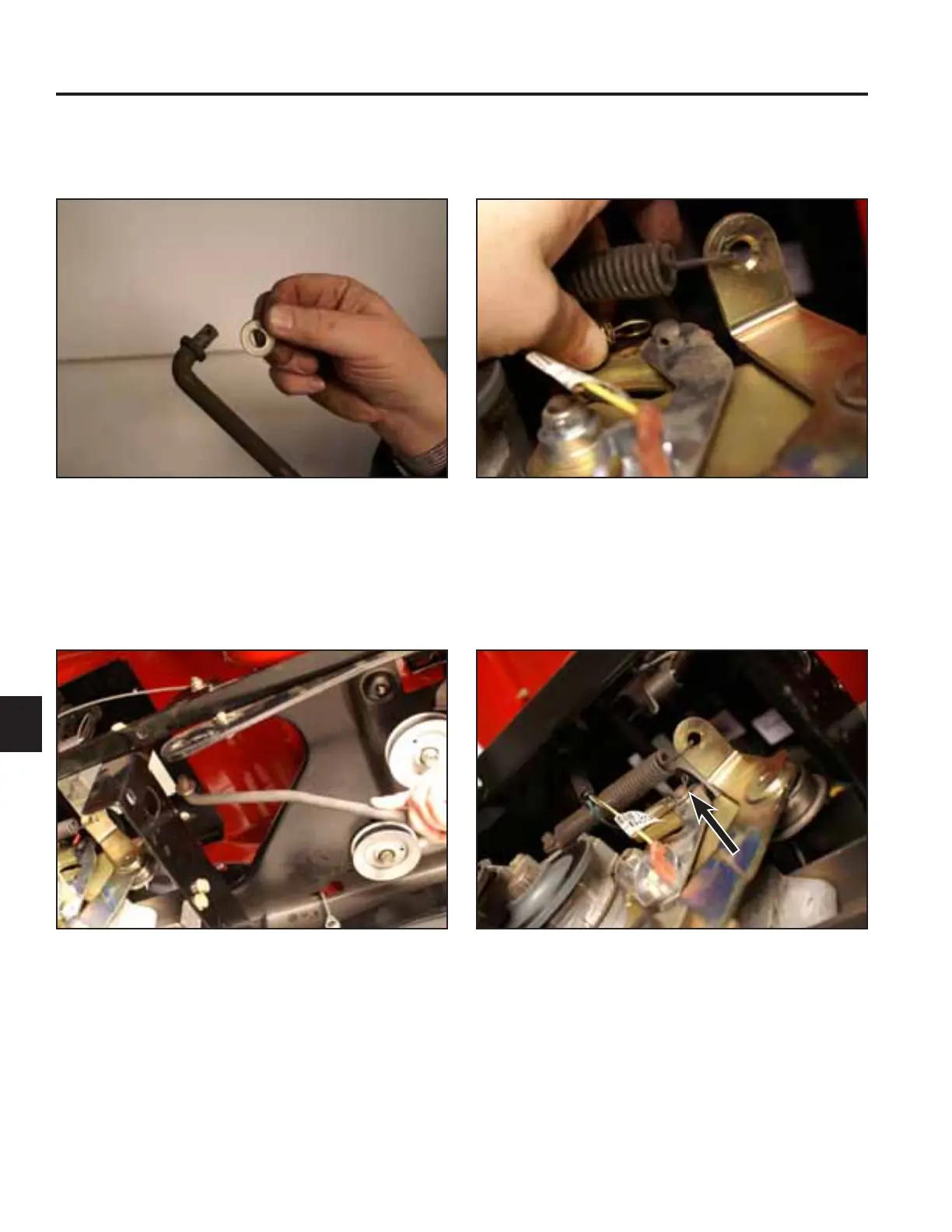

13. Slide a washer onto the rear end of the speed
control rod (Fig. 697).
 +RRNWKHVSULQJRQWRWKHVSHHGFRQWUROURG)LJ
699).
Fig 697 PICT-7532
Fig 699 PICT-7529
16. Install a cotter pin securing the spring, actuator
bracket and speed control rod to the transmission
(Fig. 700).
14. Position the rear end of the speed control rod into
the machine and slide the speed control rod into the
transmission linkage (Fig. 698).
Fig 700 PICT-7527
Fig 698 PICT-7577
