HYDROSTATIC DRIVE SYSTEM
6-17GT Series Tractors Service Manual
6

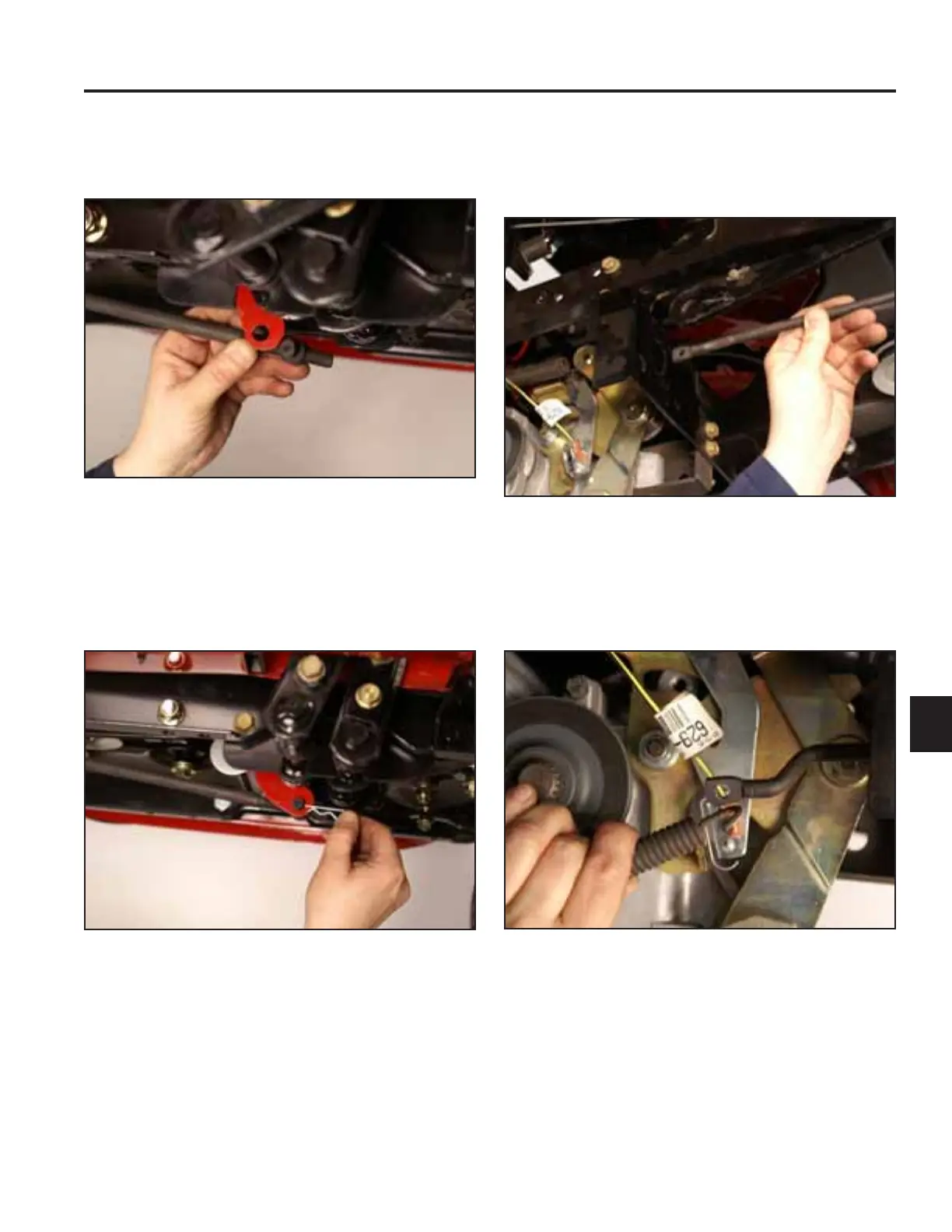

17. Insert the trunnion on the front end of the speed
control rod into the speed control linkage (Fig. 701).
19. Position the rear end of the brake control rod
through the hole in the frame and up to the trans-
mission (Fig. 703).
Fig 701 PICT-7523
Fig 703 PICT-7521
 +RRNWKHVSULQJWRWKHUHDUHQGRIWKHEUDNHFRQWURO
rod (Fig. 704).
18. Install a hairpin cotter securing the front end of the
speed control rod to the speed control linkage (Fig.
702).
Fig 704 PICT-7518
Fig 702 PICT-7522
