HYDROSTATIC DRIVE SYSTEM
6-24 GT Series Tractors Service Manual
6

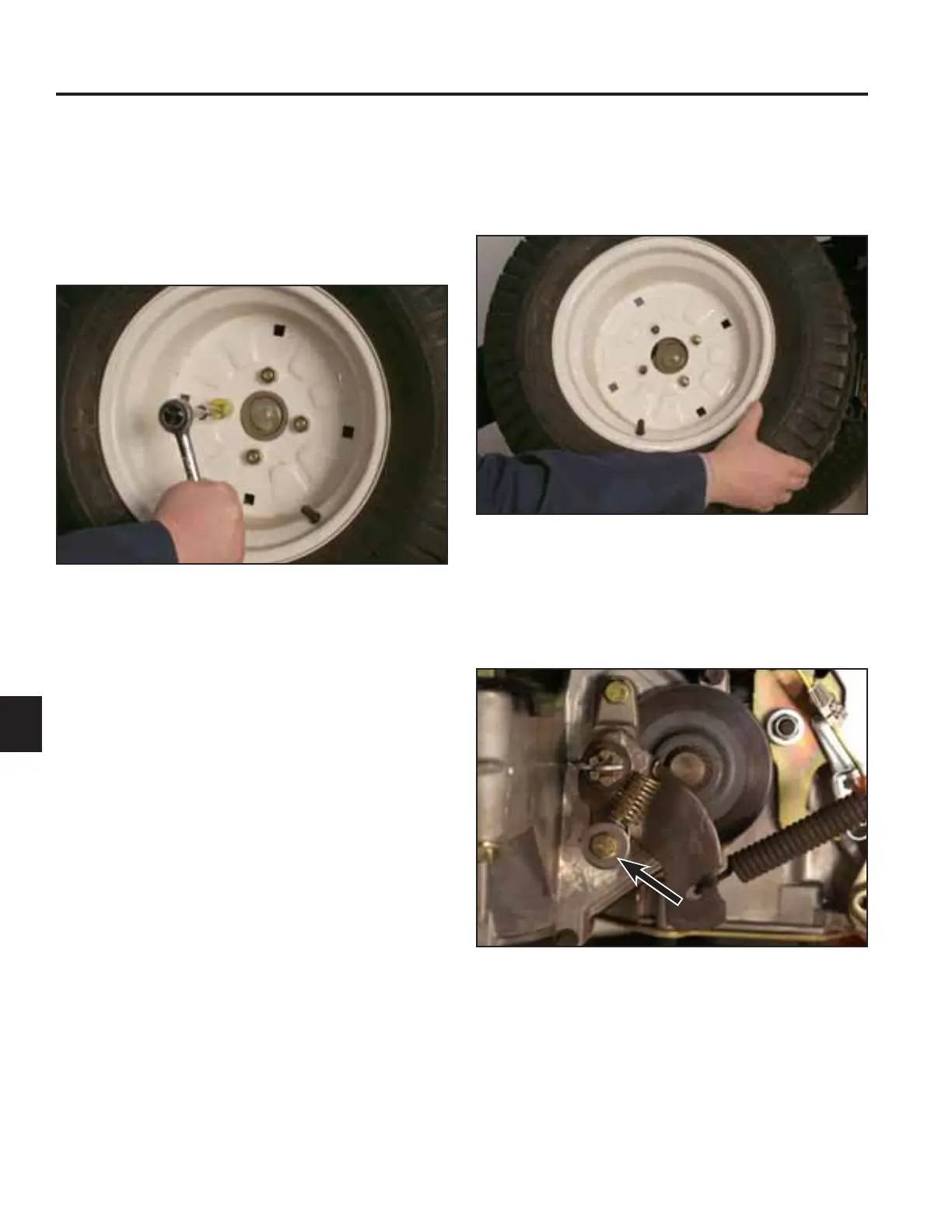

2. Raise and support the rear of the machine.
3. Remove the 4 lug nuts and remove the wheel as-
sembly from the wheel hub (Fig. 720).
Fig 720 PICT-7503a
4. Loosen the lower bolt securing the brake assembly
to the transmission housing (Fig. 721).
Fig 721 PICT-7733
%UDNH3XFN5HSODFHPHQW
%UDNH3XFN5HPRYDO
1. Loosen the 4 lug nuts securing the right rear wheel
to the wheel hub assembly (Fig. 719).
Fig 719 PICT-7502a
