HYDROSTATIC DRIVE SYSTEM
6-25GT Series Tractors Service Manual
6

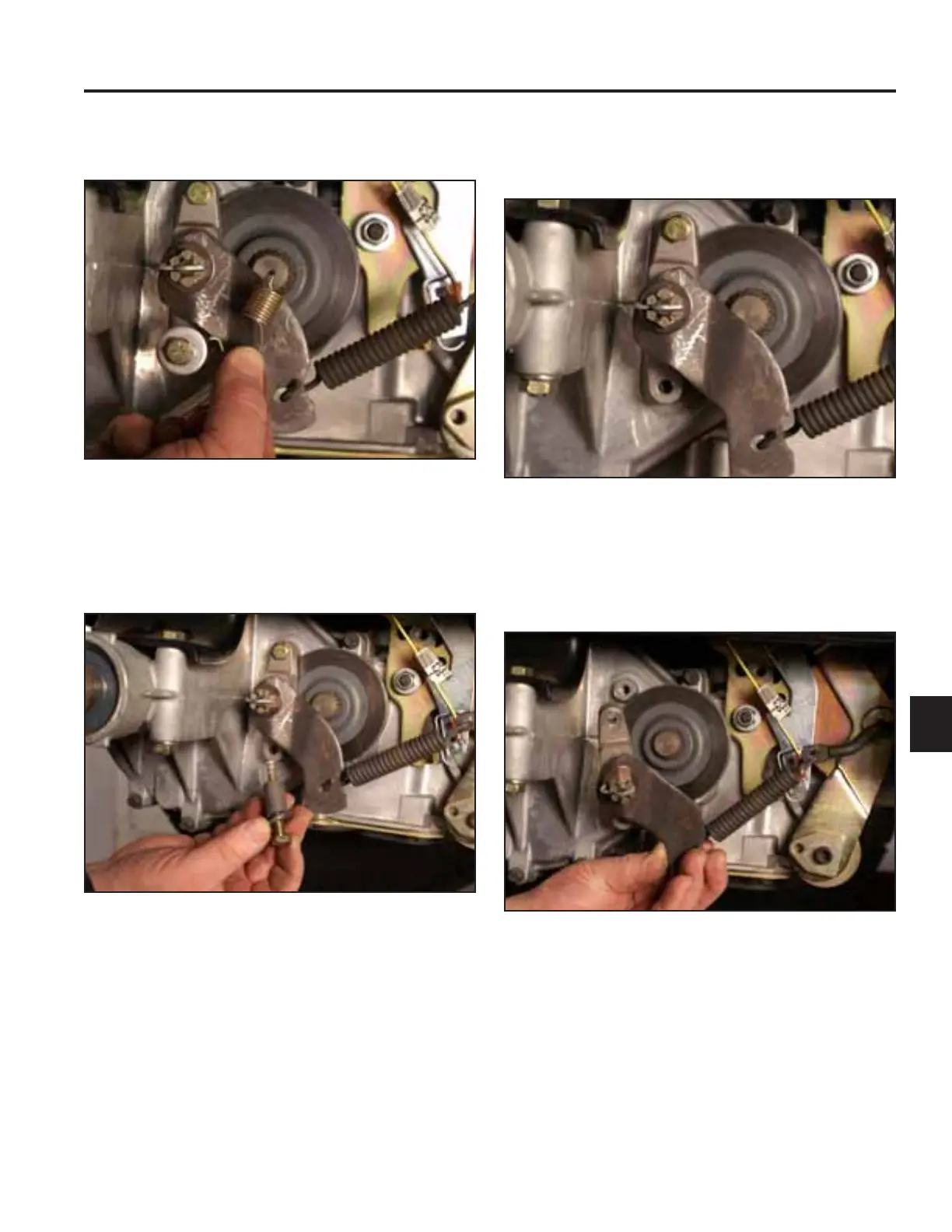

5. Remove the brake arm spring (Fig. 722).
Fig 722 PICT-7734
6. Remove the lower bolt, washer, and spacer from the
brake assembly (Fig. 723).
Fig 723 PICT-7736
7. Remove the upper bolt securing the brake assembly
to the transmission housing (Fig. 724).
Fig 724 PICT-7737
8. Remove the brake assembly from the transmission
(Fig. 725).
Fig 725 PICT-7738
