Toro GT series - Brake Puck Installation

HYDROSTATIC DRIVE SYSTEM
6-27GT Series Tractors Service Manual
6
%UDNH3XFN,QVWDOODWLRQ

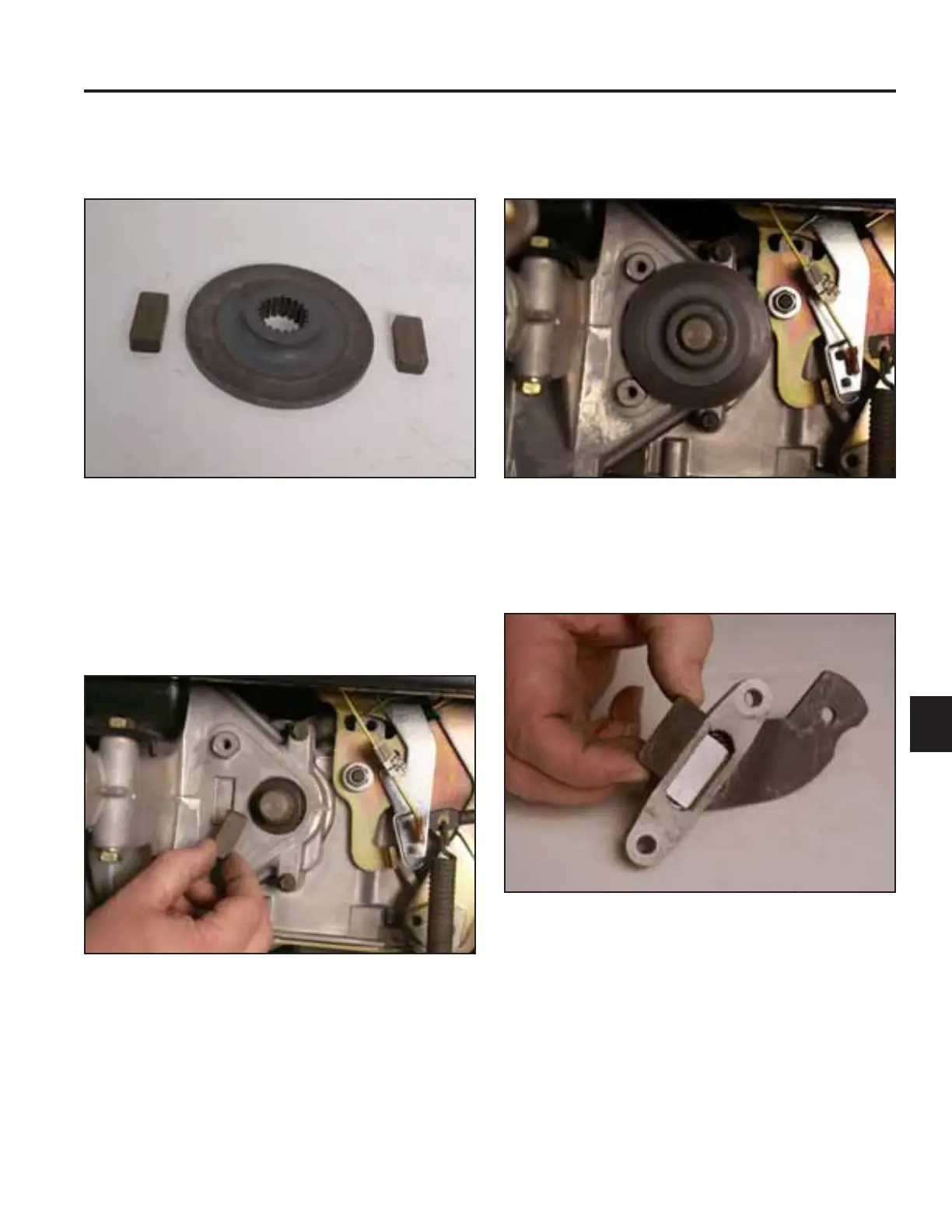

13. Inspect the disc brake and 2 brake pucks. Replace if
damaged or worn (Fig. 730).
Fig 730 PICT-7744a
1. Install a puck into the transmission housing (Fig.
731).
Fig 731 PICT-7743a
2. Slide the disc brake onto the transmission shaft (Fig.
732).
Fig 732 PICT-7745
3. Install the puck into the brake assembly (Fig. 733).
Fig 733 PICT-7741a
