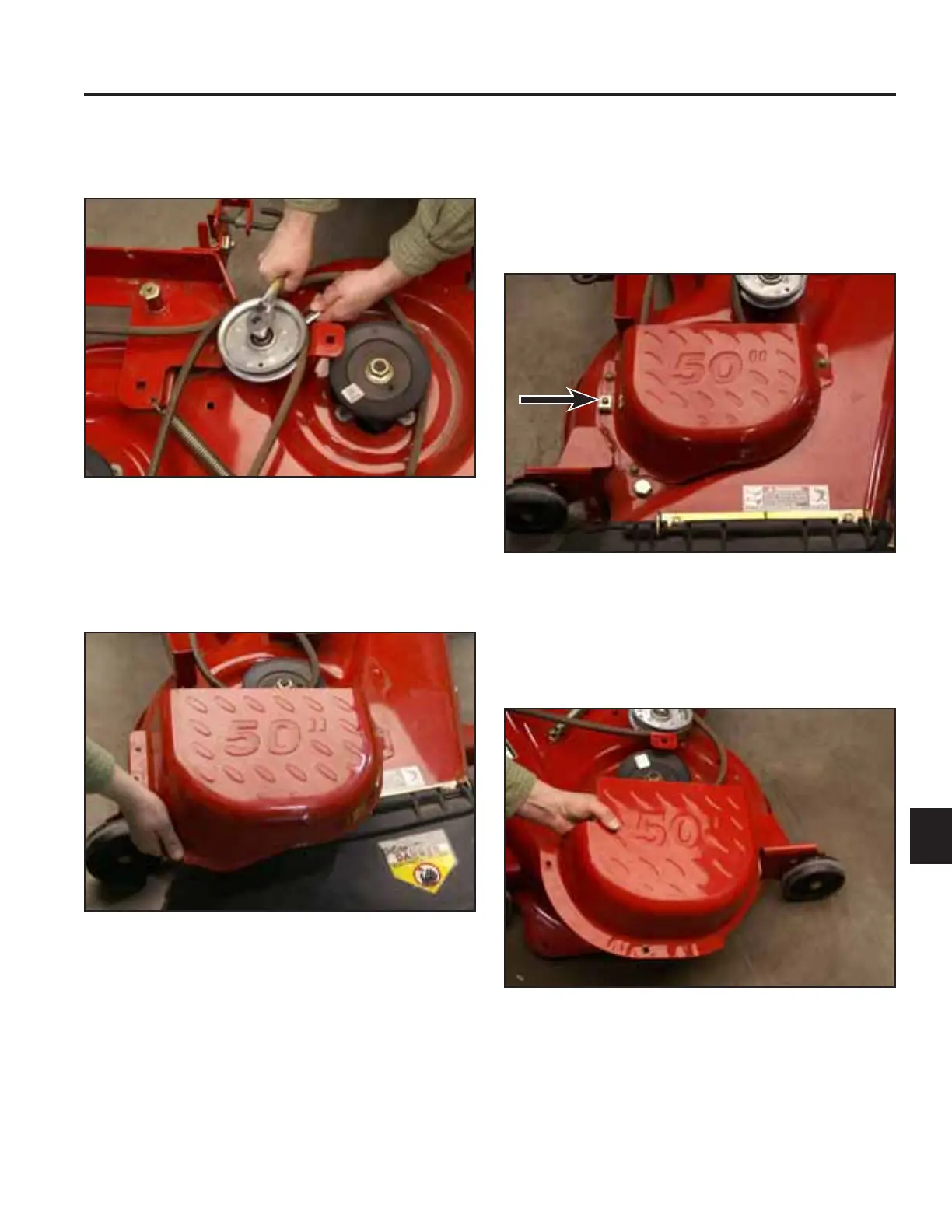

3. Tighten the nut onto the bolt securing the pulley to
the spring loaded idler assembly (Fig. 751).
5. Install 4 screws to secure the right hand spindle
cover to the mower deck (Fig. 753).
Note: There is a hook retainer bracket located under
one of the screws securing the spindle cover
to the mower deck.
Fig 751 PICT-7952
Fig 753 PICT-7947
6. Position the left hand spindle cover onto the mower
deck (Fig. 754).
4. Position the right hand spindle cover onto the mower
deck (Fig. 752).
Fig 754 PICT-7949
Fig 752 PICT-7950
