MOWER DECK
7-9GT Series Tractors Service Manual
7

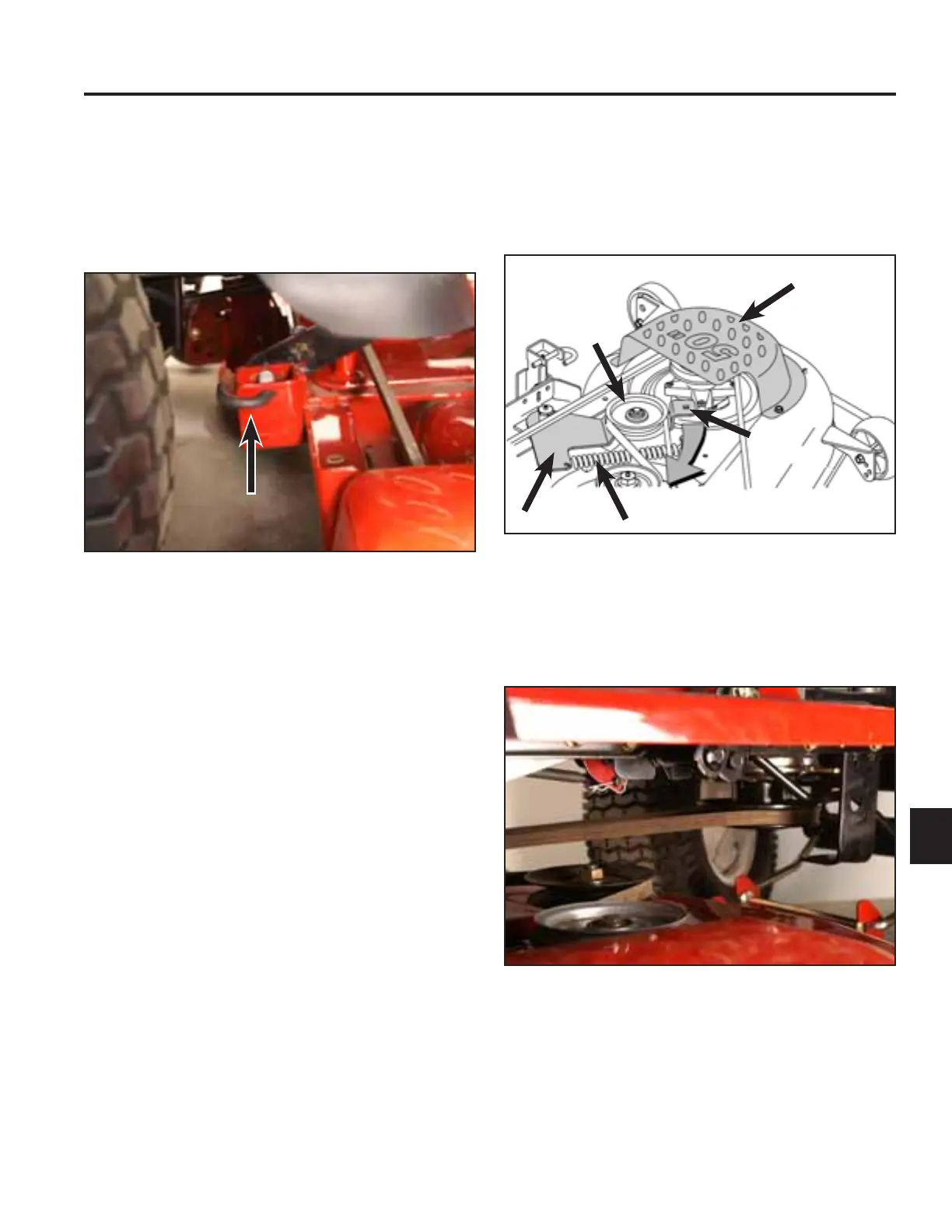

6. From the left side of the tractor, locate the deck
sup port pin on the rear left side of the deck. Pull the
deck support pin outward. Lift the deck into position
and release the deck support pin so that the deck is
hanging and supported by the deck support pin (Fig.
771).
Fig 771 PICT-7988
7. Repeat the above step on the tractor’s right side.
8. Using a breaker bar or ratchet, rotate the idler brack-
et forward and route the mower deck belt around the
electric PTO clutch (Fig. 772 and Fig. 773).
Fig 772 Fig. 20 3354-975
Fig 773 PICT-7990
A
B
C
D
E
A. Idler bracket D. Belt guard
B. Spring E. 3/8” Square hole
C. Pivoting idler pulley
