MOWER DECK
7-24 GT Series Tractors Service Manual
7

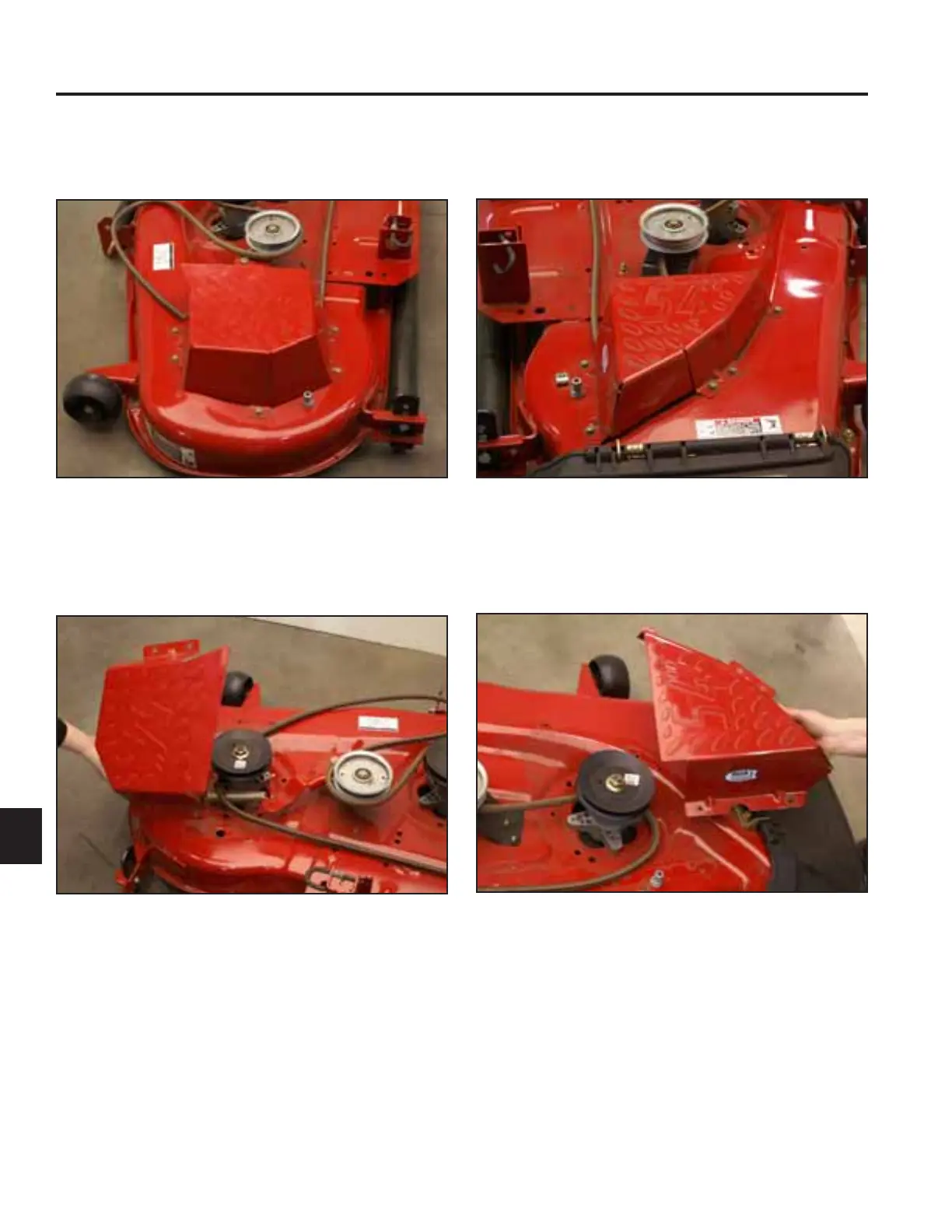

5. Remove the left hand spindle cover (Fig. 823).
Fig 823 PICT-7848
6. Remove the 5 screws securing the right hand
spindle cover to the mower deck (Fig. 824).
4. Remove the 5 screws securing the left hand spindle
cover to the mower deck (Fig. 823).
Fig 824 PICT-7847
Fig 823 PICT-7845
7. Remove the right hand spindle cover (Fig. 825).
Fig 825 PICT-7849
