Toro GT series - Page 242

MOWER DECK
7-25GT Series Tractors Service Manual
7

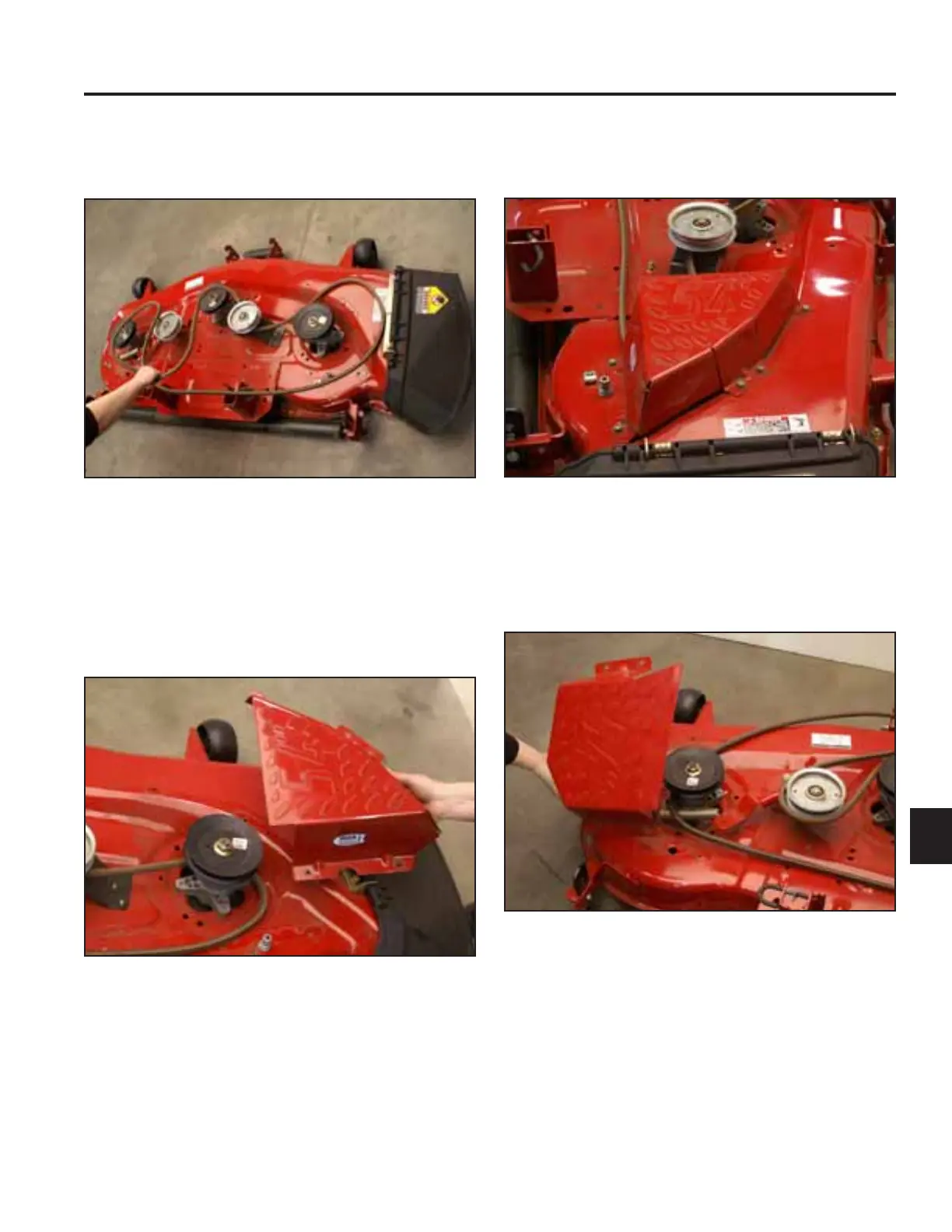

54” Mower Deck Belt Installation
1. Position the right hand spindle cover onto the mower
deck (Fig. 827).
8. Remove the mower deck belt from the mower deck
(Fig. 826).
Fig 827 PICT-7849
Fig 826 PICT-7851
2. Install 5 screws to secure the right hand spindle
cover to the mower deck (Fig. 828).
Fig 828 PICT-7847
3. Position the left hand spindle cover onto the mower
deck (Fig. 829).
Fig 830 PICT-7848
