MOWER DECK
7-42 GT Series Tractors Service Manual
7

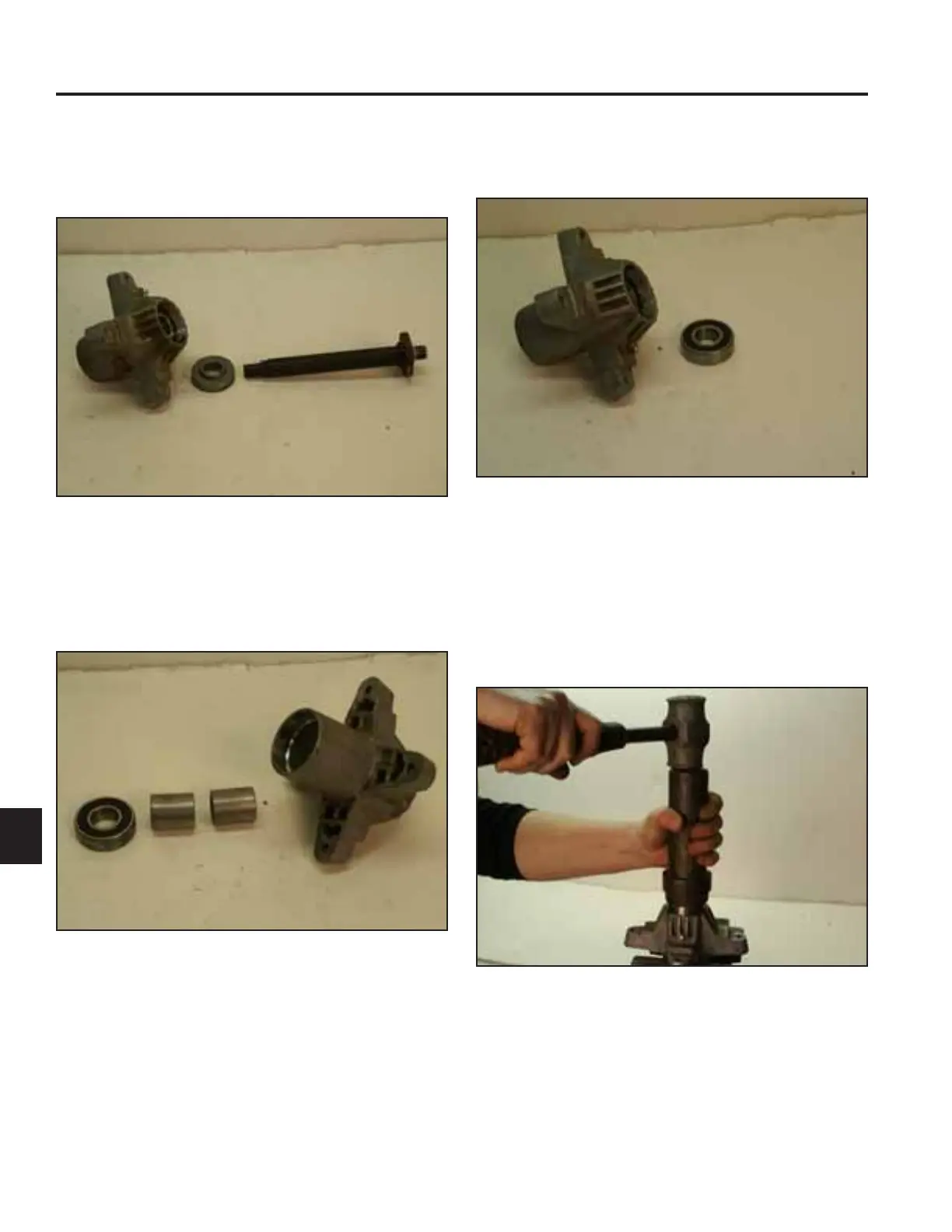

4. Remove the spindle assembly from the vise and
remove the spindle shaft and spacer from the
spindle housing (Fig. 884).
Fig 884 PICT-7901
5. Remove the bearing and two spacers from the pulley
side of the housing (Fig. 885).
Fig 885 PICT-7903
6. Remove the second bearing from the blade side of
the spindle housing (Fig. 886).
Fig 886 PICT-7904
7. Inspect the bearings and spacers. Replace if worn or
damaged.
8. Install a bearing into the blade side of the spindle
housing (Fig. 887).
Fig 887 PICT-7906
