Toro GT series User Manual

MOWER DECK
7-43GT Series Tractors Service Manual
7

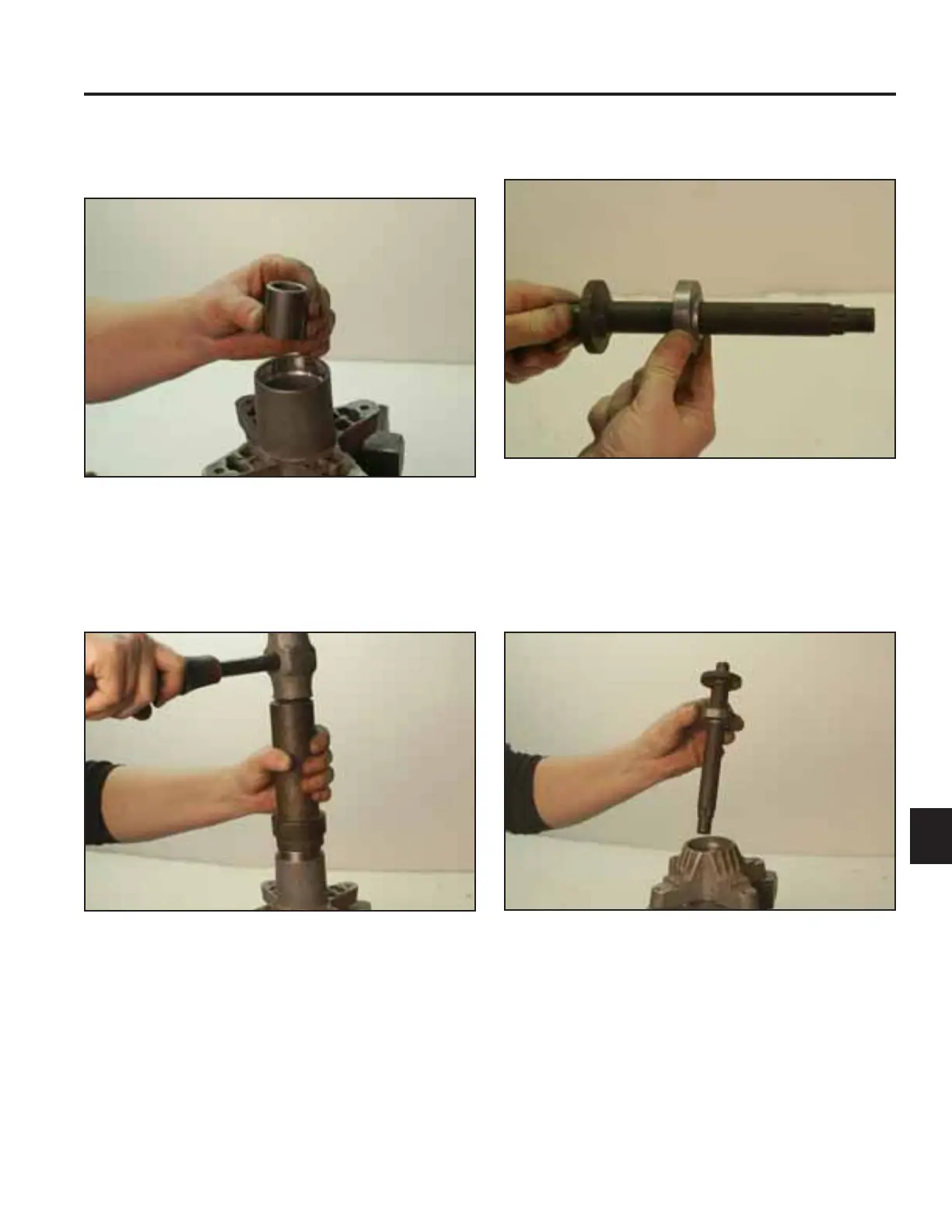

9. Insert 2 spacers into the pulley side of the spindle
housing (Fig. 888).
11. Slide the spacer onto the spindle shaft (Fig. 890).
Fig 888 PICT-7908a
Fig 890 PICT-7912a
12. Slide the spindle shaft into the spindle housing by
LQVHUWLQJLWLQWRWKHEODGHVLGHRIWKHKRXVLQJ¿UVW
(Fig. 891).
10. Install a bearing into the pulley side of the spindle
housing (Fig. 889).
Fig 891 PICT-7913a
Fig 889 PICT-7910a
