MOWER DECK
7-44 GT Series Tractors Service Manual
7

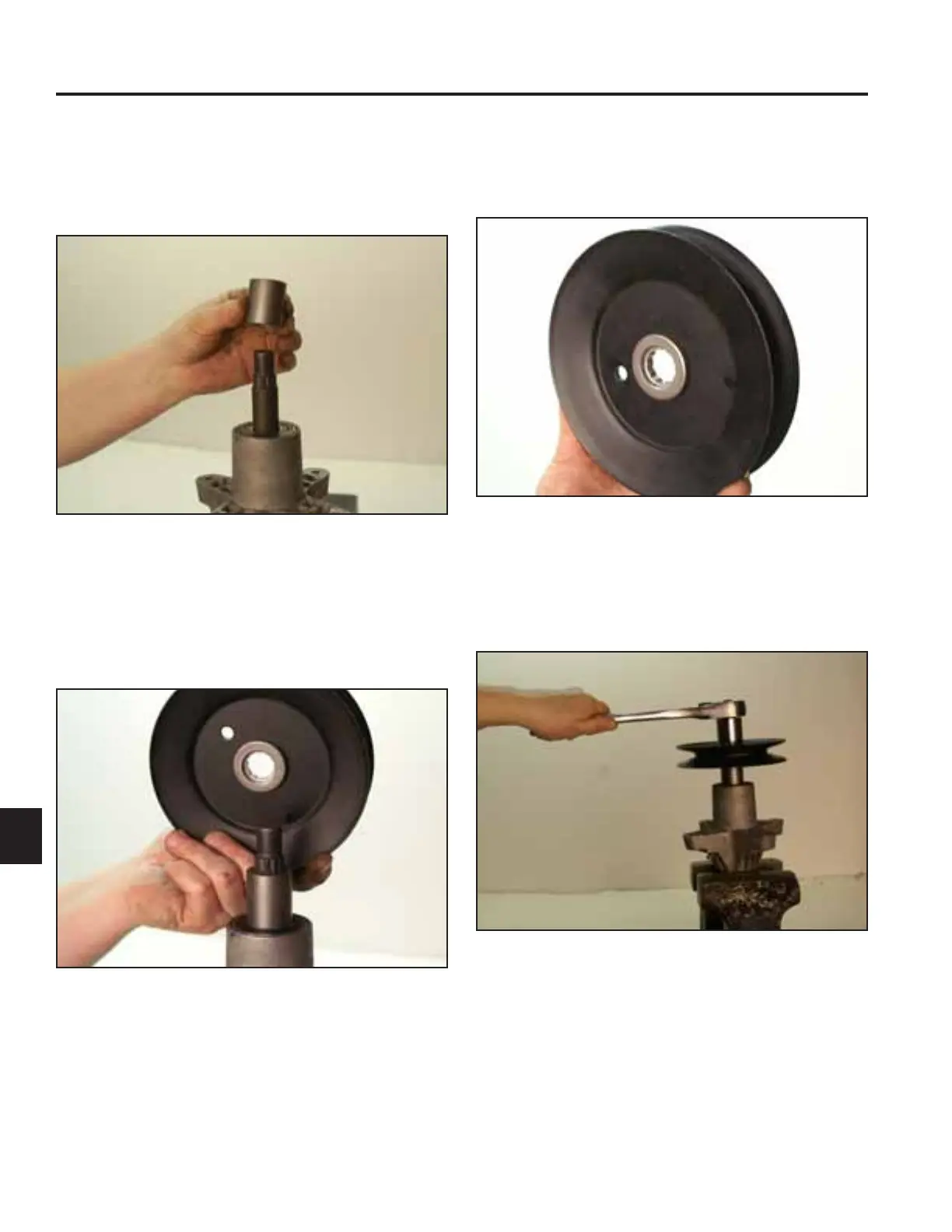

13. Secure the spindle housing into a vise with the
pulley side up.
14. Slide a spacer onto the spindle shaft (Fig. 892).
Fig 892 PICT-7916a
15. Slide the pulley onto the spindle shaft. Ensure the
center of the pulley is seated onto machined star
end of the shaft (Fig. 893).
Fig 893 PICT-7918
Note: Slide the pulley onto the spindle shaft so
WKDWWKHÀDQJHGVLGHRIWKHSXOOH\LVLQVWDOOHG
blade side down (Fig. 894).
Fig 894 PICT-7919
16. Install a nut securing the pulley to the spindle
assembly (Fig. 895).
Fig 895 PICT-7894
