CHASSIS
3-92 LX Lawn Tractor Service Manual
3

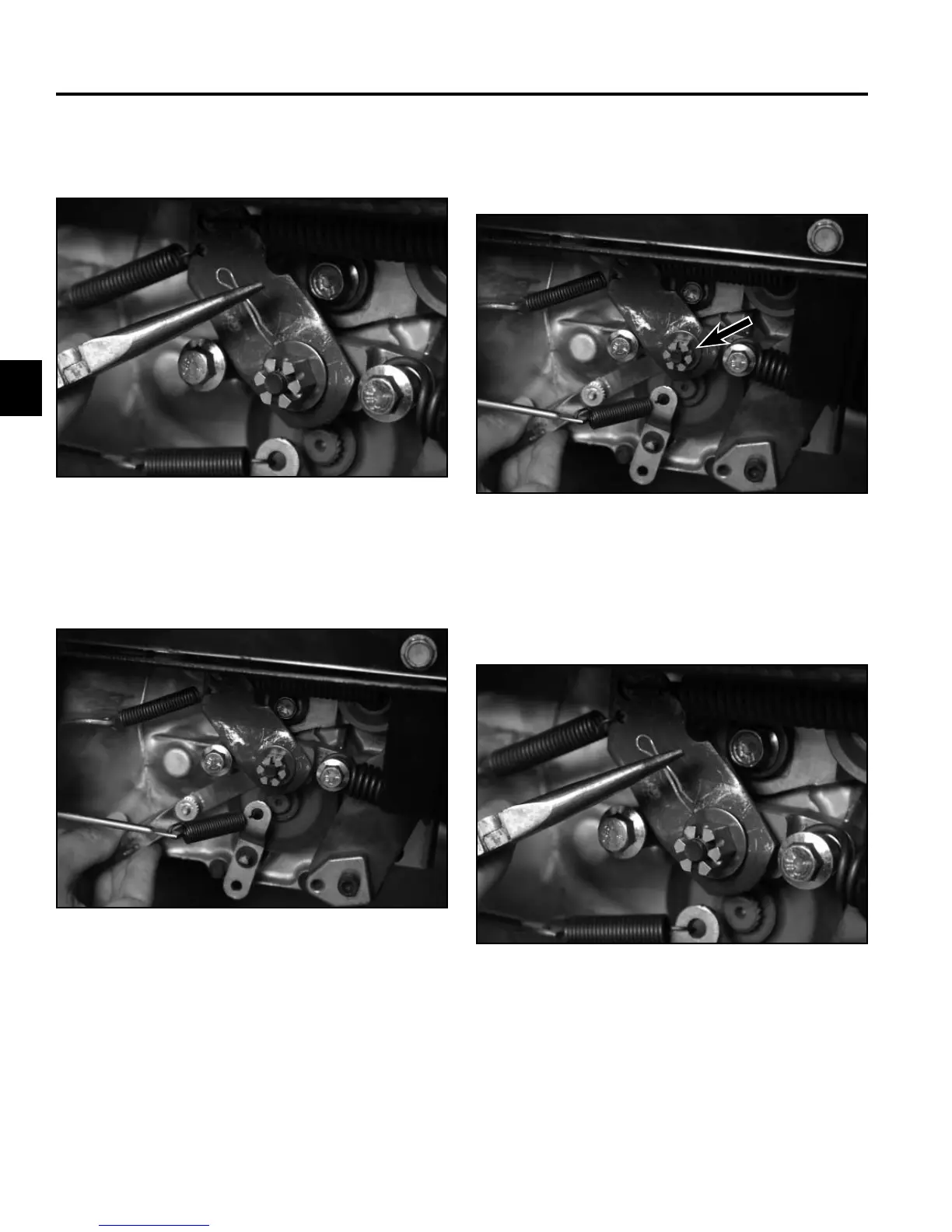

Fig 351 PICT-7606
5. Insert a 0.015 in. (.38mm) feeler gauge between the
brake disc and brake puck (Fig. 351).
A. Feeler gauge
Fig 350 PICT-7605
4. Remove the cotter pin securing the brake adjusting
nut (Fig. 350).
Fig 353 PICT-7605
7. Install a new cotter pin (Fig. 353).
A. Brake adjusting nut
Fig 352 PICT-7606
6. Tighten or loosen the brake adjusting nut until slight
resistance is felt on the feeler gauge when sliding it
in and out (Fig. 352).
A
A
