Toro LX Lawn Tractor - Installation

ENGINE
4-7LX Lawn Tractor Service Manual
4

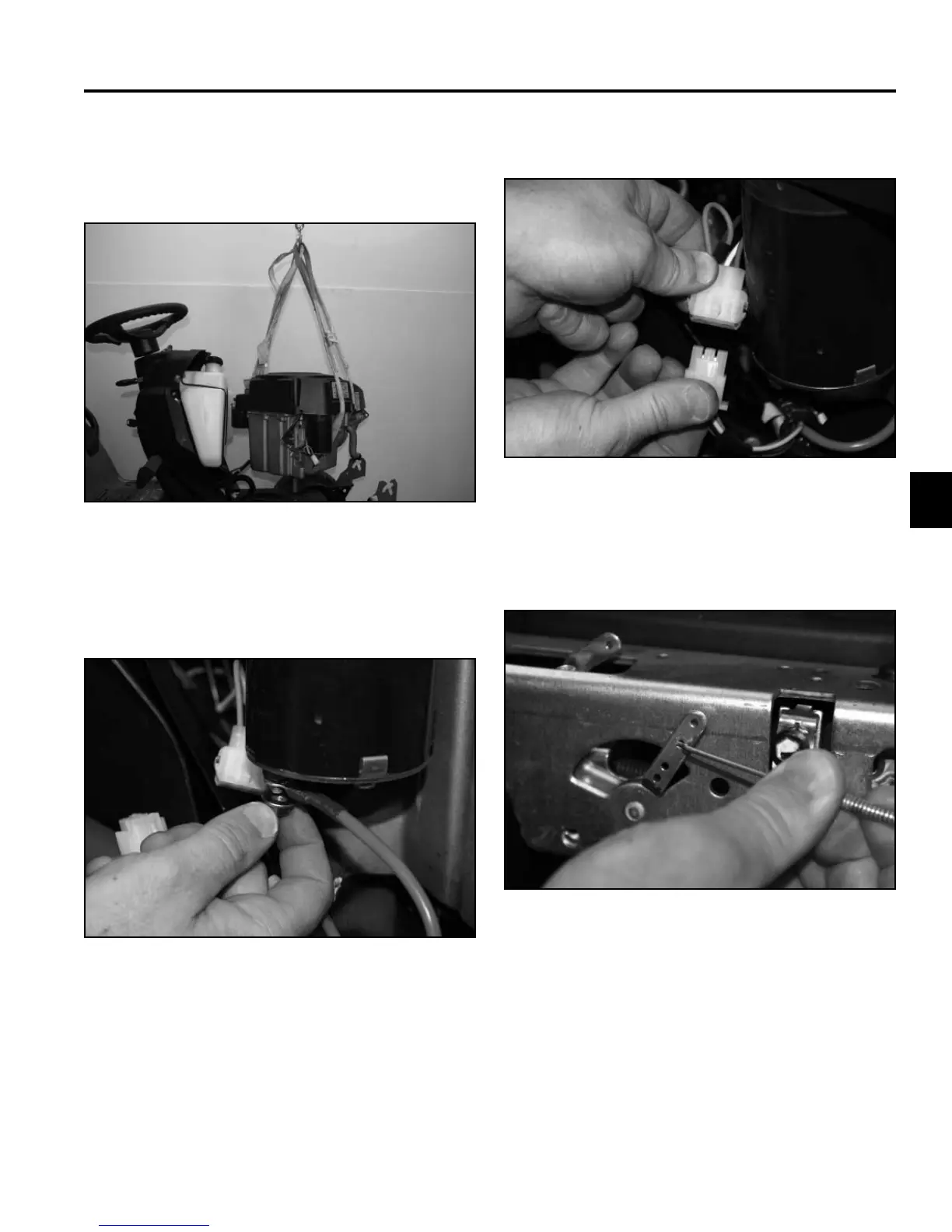

1. Position the engine onto the frame (Fig. 409).
3. Unplug the wire harness (Fig. 411).
Fig 409 PICT-7386
Fig 411 PICT-7380
4. Install the z-bend into the speed control lever
(second hole from the top) (Fig. 412).
2. Slide the positive wire onto the starter assembly and
install the nut to secure it (Fig. 410).
Fig 412 PICT-7390
Fig 410 PICT-7388
Installation
