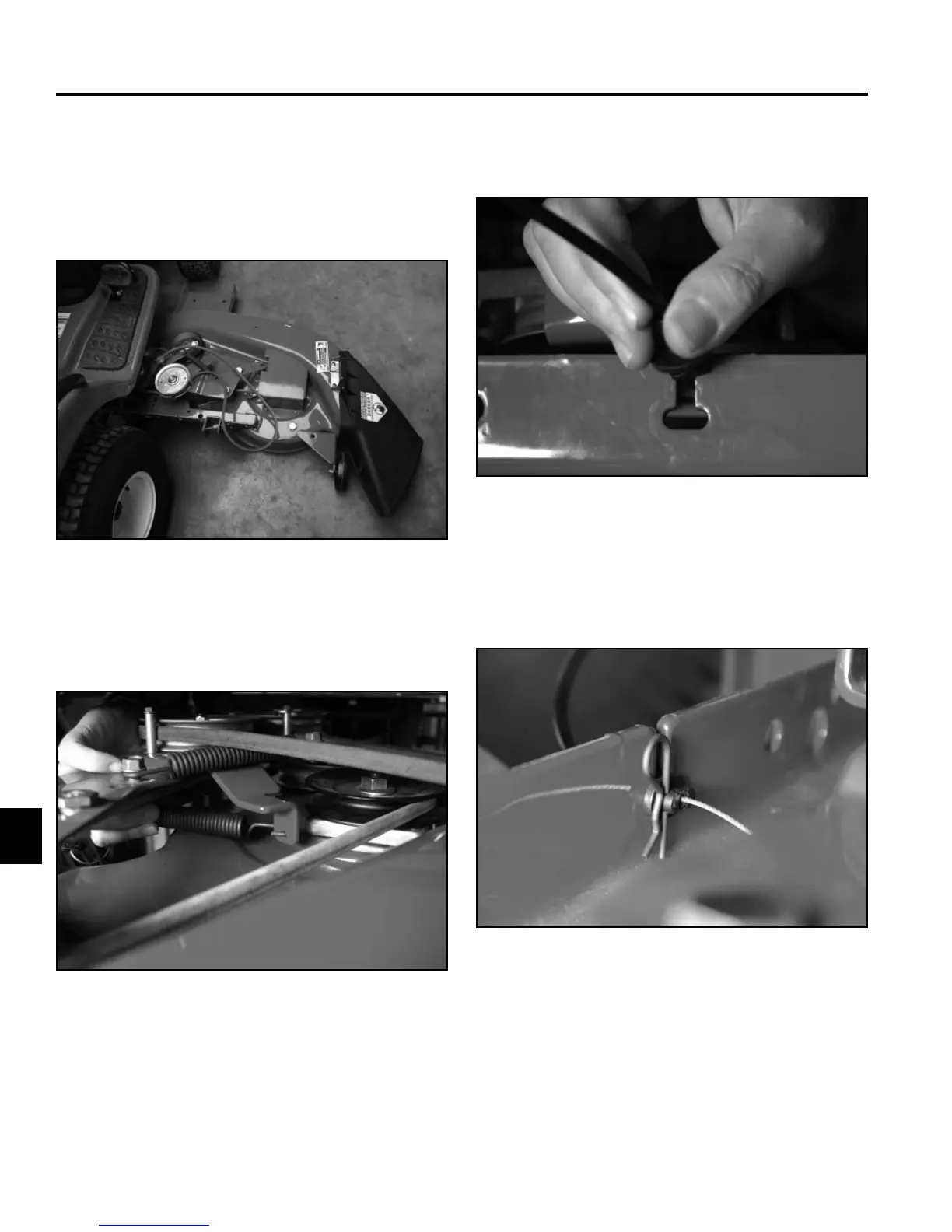

46” Mower Deck Installation
1. Slide the mower deck under the tractor so the side
discharge chute is on the right side of the tractor
(Fig. 822).
3. Install the deck engagement cable into the bracket
on the rear of the mower deck (Fig. 824).
4. Install a hairpin cotter into the deck engagement
cable fl ange to secure it to the rear of the mower
deck (Fig. 825).
Fig 822 PICT-9718
Fig 824 PICT-9709
Fig 825 PICT-9706
2. Hook the deck engagement spring to the idler
bracket (Fig. 823).
Fig 823 PICT-9710
