MOWER DECK
7-76 LX Lawn Tractor Service Manual
7
2. Slide the cutting deck (from the right side) under-
neath the tractor (Fig. 839).
4. Place blocks under the rear of the mower deck to
raise it up.
5. Lower the lift lever to the lowest height-of-cut setting
(Fig. 841).

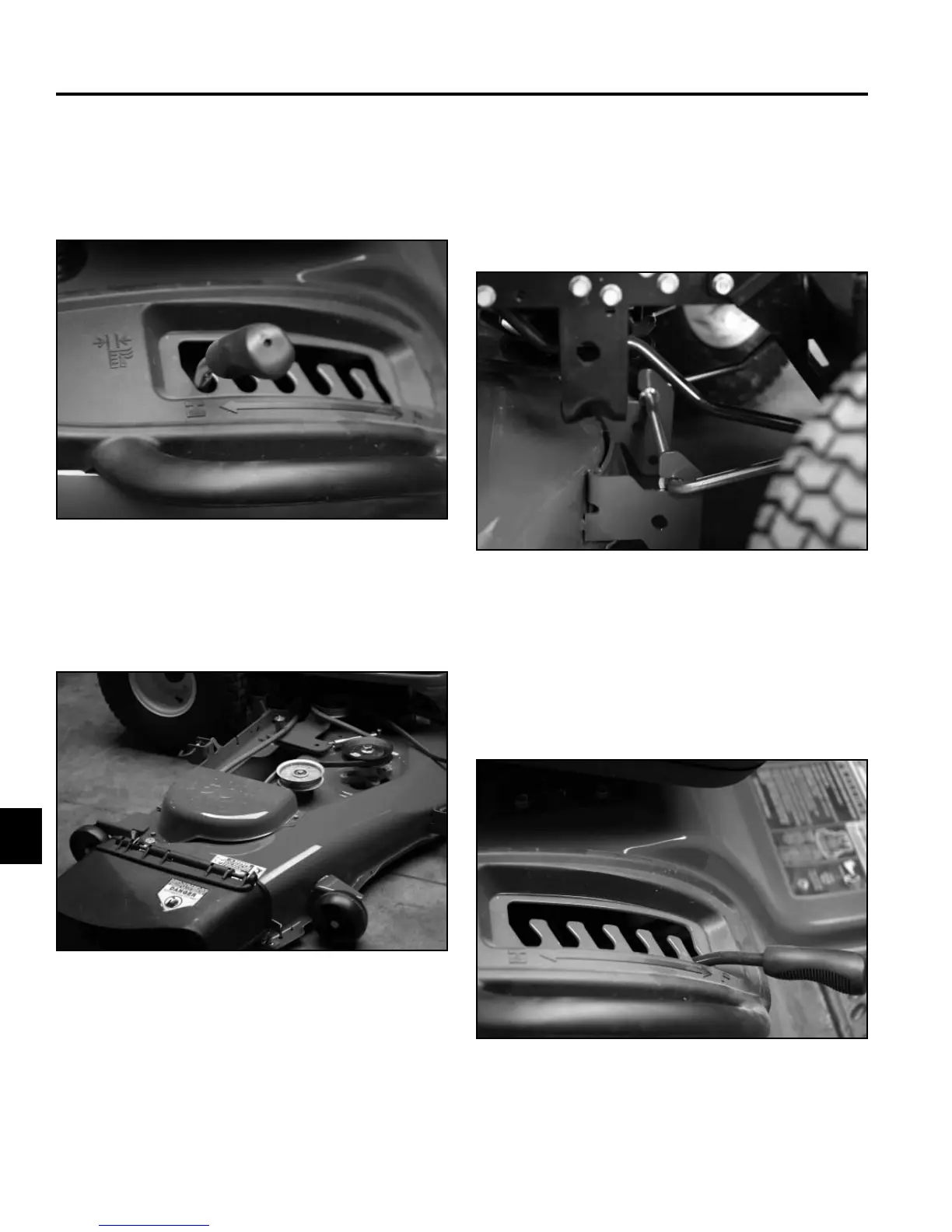

Fig 839 PICT-9765
Fig 841 PICT-9768
3. Slide the cutting deck toward the front of the tractor
allowing the hooks on the deck to hook onto the
deck stabilizer rod (Fig. 840).
Note: Ensure the fl anges on the stabilizer rod are on
the inside of the hooks on the deck.
Fig 840 PICT-9771
50” Mower Deck Installation
1. Raise the lift lever to the highest height-of-cut setting
(Fig. 838).
Fig 838 PICT-9766
