CHASSIS
3-74 LX Lawn Tractor Service Manual
3

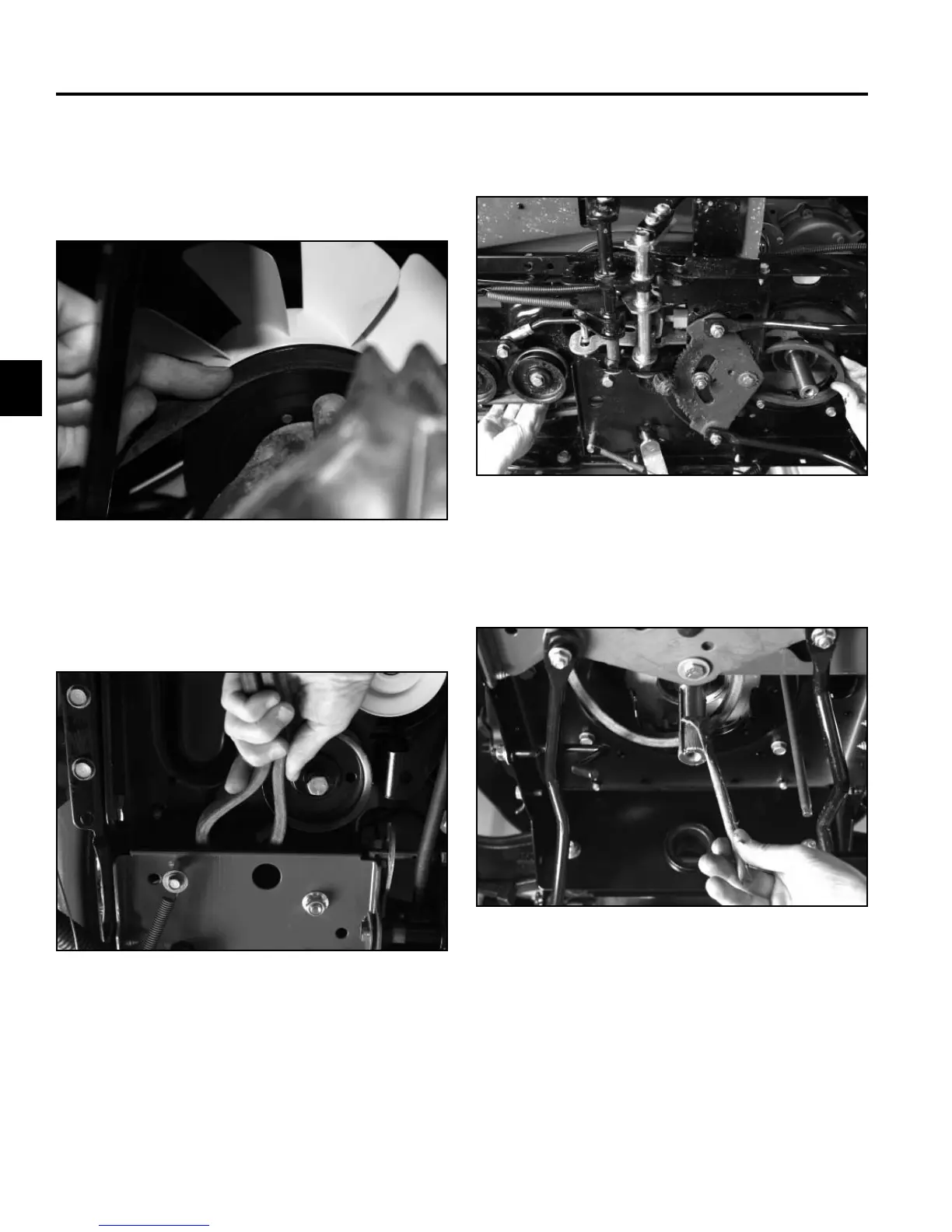

Fig 289 PICT-7587
2. Route the belt between the frame and the steering
support bracket (Fig. 289).
Fig 288 PICT-7583
1. Position the transmission belt around the transmis-
sion fan pulley (Fig. 288).
Installation
Fig 291 PICT-7589
4. Apply anti-seize compound to the crankshaft (Fig.
291).
Fig 290 PICT-7314
3. Continue routing the belt forward and position it
around the crankshaft (Fig. 290).
