Toro LX Lawn Tractor - Installation

CHASSIS
3-39LX Lawn Tractor Service Manual
3
Fig 152 PICT-7136
Fig 154 PICT-7212
2. Position the speed control pedal to the speed control
assembly (Fig. 152).
4. Position the brake pedal to the brake control
assembly (Fig. 154).
Fig 153 PICT-7211
Fig 151 PICT-7138
3. Install 2 bolts to secure the speed control pedal to
the speed control assembly (Fig. 153).

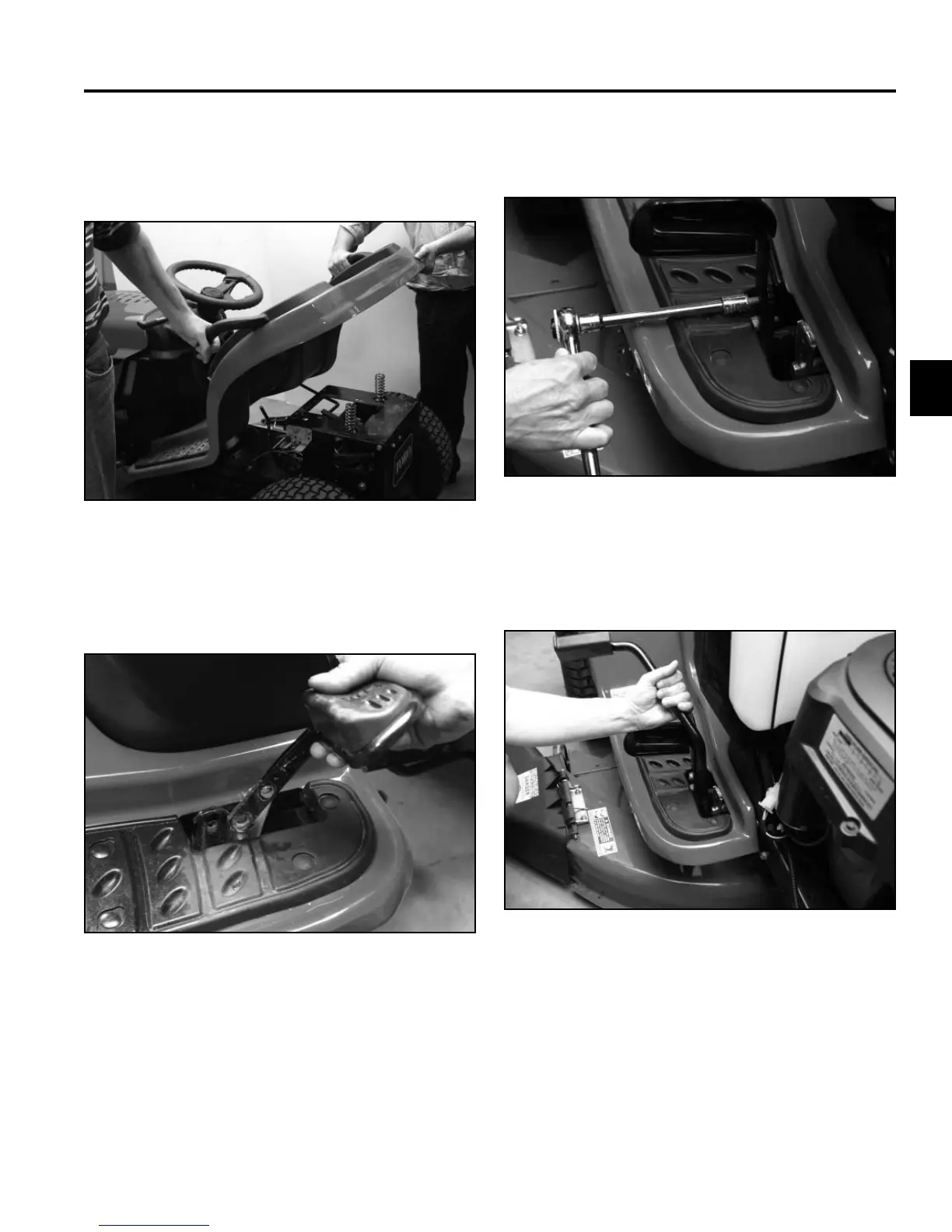

1. Position the fender onto the frame (Fig. 151).
Installation
