Toro LX Lawn Tractor - 42 Mower Deck Installation

MOWER DECK
7-67LX Lawn Tractor Service Manual
7

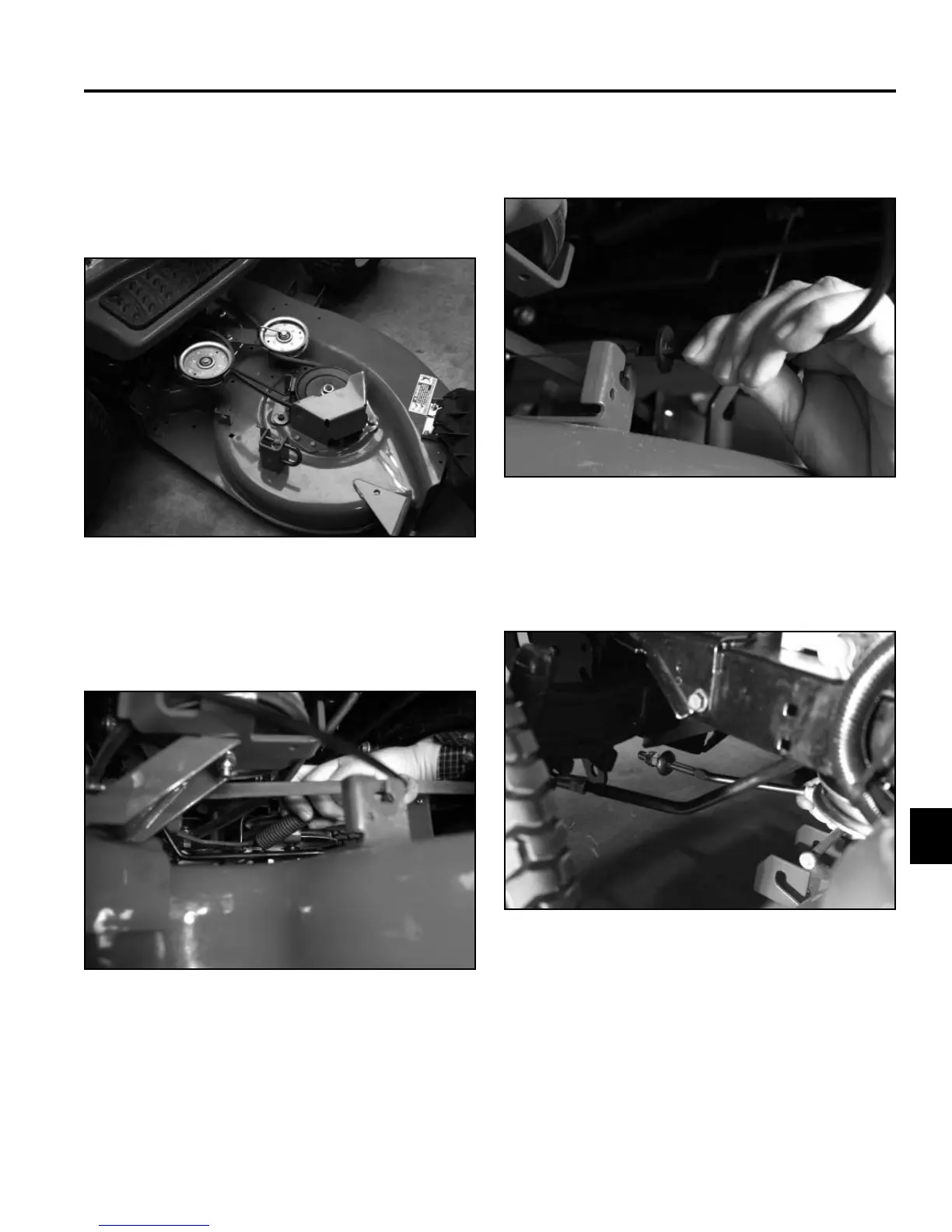

42” Mower Deck Installation
1. Slide the mower deck under the tractor so the side
discharge chute is on the right side of the tractor
(Fig. 802).
Fig 802 PICT-9684
2. Hook the deck engagement spring to the idler
bracket (Fig. 803).
Fig 803 PICT-9678
4. Install the front adjustment deck rod into the hanger
plate (Fig. 805).
Fig 805 PICT-9683
3. Install the deck engagement cable into the bracket
on the rear of the mower deck (Fig. 804).
Fig 804 PICT-9679
