MOWER DECK
7-14 LX Lawn Tractor Service Manual
7
46” Mower Deck - RH Idler Bracket
Assembly

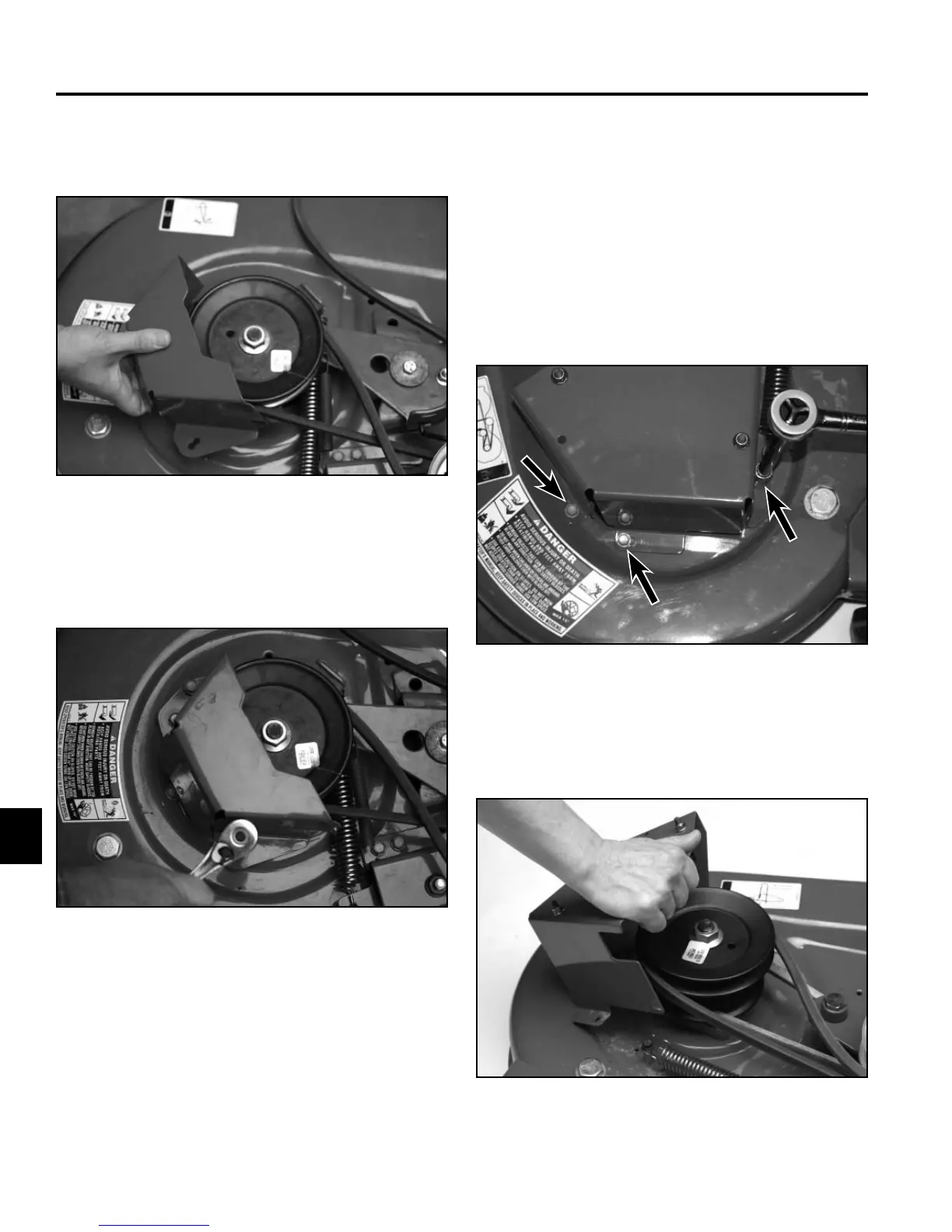

3. Remove the mower deck belt cover from the mower
deck (Fig. 596).
Fig 596 PICT-7839
1. Remove the mower Deck from the tractor. Refer to
“46” Mower Deck Removal” on Page 7-69.
2. Remove the 3 self-tapping screws securing the left
mower deck belt cover to the mower deck (Fig. 595).
Fig 595 PICT-7835
Removal
5. Position the left belt cover onto the mower deck (Fig.
593).
Fig 593 PICT-9775
7. Install the Mower Deck onto the tractor. Refer to “42”
Mower Deck Installation” on page 7-67.
6. Install the 3 self-tapping screws to secure the left
belt cover to the mower deck (Fig. 594).
Fig 594 PICT-9774
